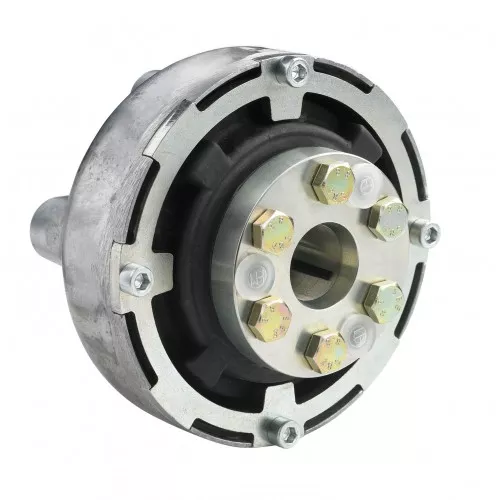

Vetus UNIFLEX Flexible Coupling
The Vetus UNIFLEX Flexible Coupling is designed to address the challenge of precise shaft alignment in marine propulsion systems. Its key feature is the ability to accommodate up to a 2° misalignment in the shaft line, ensuring flexibility and preventing stress on the system. This coupling effectively dampens axial and radial vibrations, providing a smoother and quieter operation. It creates a flexible connection between the shaft and gearbox, making it ideal for situations where perfect alignment may be difficult to achieve. However, this coupling is not suitable for use with V-Drives. The maximum allowable shaft RPM for these couplings is 1500 RPM when the shaft line is broken by 2°.
Key Features:
- Allows Shaft Line Misalignment up to 2°
- Dampens Axial and Radial Vibration
- Provides Flexible Connection between Shaft and Gearbox
- Maximum Shaft RPM: 1500 RPM at 2° Misalignment
- Not Compatible with V-Drives
- Available in Various Sizes and Types
Product Assistance:
The Yacht-Supply24.com team is ready to assist you in selecting the right propulsion system for your yacht or boat. Contact us through our feedback form or by reaching out to our managers via phone.
Vetus Catalog Part Numbers:
UNIFL1320, UNIFL1325, UNIFL1330, UNIFL1630, UNIFL1635, UNIFL1640
Dimensions:
The following table outlines the available sizes for Vetus UNIFLEX Flexible Couplings. Internal dimensions are listed in millimeters, while external dimensions are provided in inches.
| Shaft Diameter | Coupling Type | Coupling Diameter | Coupling Length |
| 20 mm | Uniflex 13 | 1 inch | 88 mm |
| 25 mm | Uniflex 13 | 1 1/4 inch | 100 mm |
| 30 mm | Uniflex 13 | 1 1/2 inch | 120 mm |
| 30 mm | Uniflex 16 | 1 1/2 inch | 120 mm |
| 35 mm | Uniflex 16 | 2 inch | 140 mm |
| 40 mm | Uniflex 16 | 2 1/8 inch | 160 mm |
