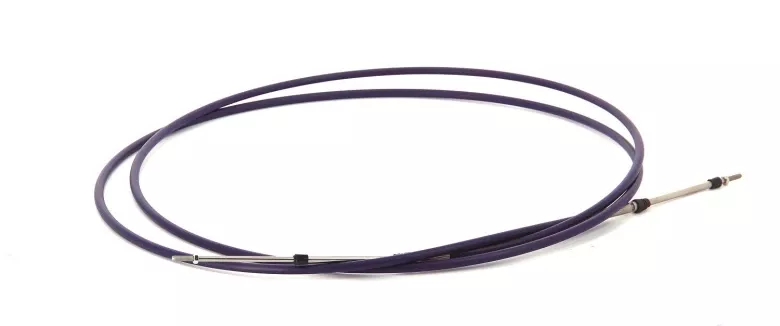

Vetus CABLE50A Type 33C Control Cable, 5.0 m Length
The Vetus CABLE50A is a mid-range Type 33C push/pull control cable designed for marine throttle and gearshift systemsrequiring short to moderately short routing paths. With a total end-to-end length of 5.0 meters, this cable deliversstable and reliable mechanical performance for installations where long-distance routing is unnecessary. Its constructionuses a strong multi-strand internal core paired with a standard protective outer jacket, providing dependable operationacross a wide range of marine engine control setups.
Main Features
- Type 33C standard marine control cable
- Total length: 5.0 m
- Optimized for shorter and simpler routing paths
- Compatible with Vetus, Morse, Teleflex, Ultraflex and other control systems
- Standard 10-32 UNF threaded rod ends
- Suitable for throttle and gearshift applications
- Part of the discontinued Red Jacket cable line (available while stocks last)
Technical Overview
| Parameter | Specification |
|---|---|
| Cable Type | Type 33C (Standard) |
| Overall Length | 5.0 m |
| Thread | 10-32 UNF |
| Nominal Travel | 75 mm |
| Stroke | 76.2 mm (3″) |
| Minimum Bend Radius | 130 mm |
Additional Information
- Recommended for short and uncomplicated mechanical cable routes
- Available in sizes from 0.5 m to 10 m in 0.5 m increments
- Lengths up to 15 m are available by special request
- Standard mechanical performance suitable for throttle and shift systems
Application
The Vetus CABLE50A is well suited for marine installations requiring a dependable 5.0-meter Type 33C control cable. Its130 mm minimum bending radius enables installation in confined spaces while ensuring smooth and predictable mechanicalmovement for throttle and gearshift control. As part of the Red Jacket line, it remains available only while currentinventory lasts.
