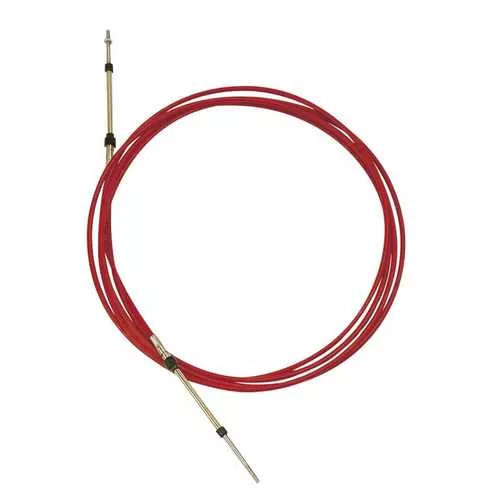

Vetus CABLE30A Type 33C Control Cable, 3.0 m Length
The Vetus CABLE30A is a mid-range Type 33C push/pull cable designed for marine throttle and gearshift systems requiring a reliable solution for short or moderately short routing paths. With an overall length of 3.0 meters, it provides smooth mechanical performance for installations where long-distance routing is unnecessary. Its standard construction includes a durable multi-strand internal core and a protective outer sheath suitable for a wide range of marine engine remote control applications.
Main Features
- Type 33C standard marine control cable
- Total length: 3.0 m
- Designed for short and simple routing paths
- Suitable for throttle and gearshift control
- Compatible with Vetus, Morse, Teleflex, Ultraflex and similar control systems
- Standard 10-32 UNF threaded rod ends
Technical Overview
| Parameter | Specification |
|---|---|
| Cable Type | Type 33C (Standard) |
| Overall Length | 3.0 m |
| Thread | 10-32 UNF |
| Nominal Travel | 75 mm |
| Stroke | 76.2 mm (3″) |
| Minimum Bend Radius | 130 mm |
Additional Information
- Recommended for simple and short mechanical routing paths
- Available from 0.5 m to 10 m in 0.5 m increments
- Lengths up to 15 m available by special order
- Provides reliable, standard-performance operation in marine throttle/shift systems
Application
The Vetus CABLE30A is well suited for marine installations requiring a dependable 3.0-meter Type 33C cable. Its 130 mm minimum bending radius supports routing in confined spaces while ensuring smooth, consistent throttle and gearshift control performance.
