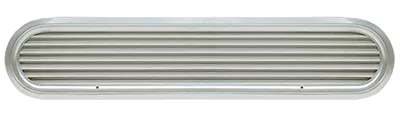

Ventilation Port Type ASV80 ASV080A
The ASV80 ventilation port is designed to efficiently supply air for marine diesel engines up to 80Hp. It ensures optimal combustion and cooling performance, making it a vital component in any marine application.
- Product Number: ASV080A
- Dimension A: 660 mm
- Cutout B: 640 mm
- Dimension C: 159 mm
- Cutout D: 139 mm
- Cutout Radius E: 69.5 mm
- Free Flow Area: 3.21 dm²
- Material: Polished anodised aluminium frame and grills
- Engine Compatibility: Suitable for engines up to 80Hp
A marine diesel engine requires an adequate supply of air to operate effectively. The amount of combustion air needed is approximately 6.1m³ per kW (4.5 m³ per hp) per hour, assuming a maximum air velocity of 3m/sec. Additionally, the engine needs sufficient ventilation air to remove the heat generated during operation, which is roughly equal to the amount of combustion air required.
