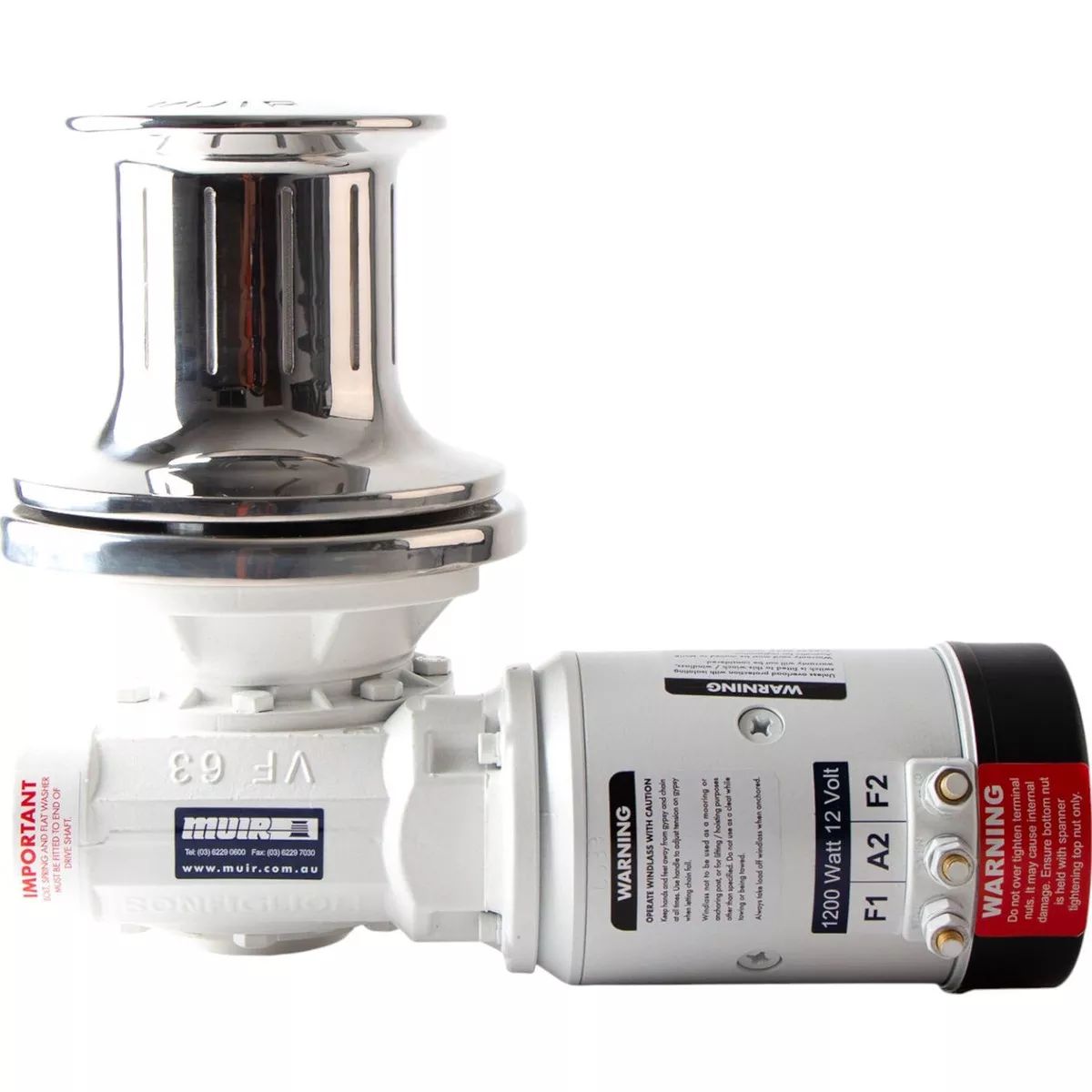

VC2500 Vertical Powered Capstans 12/24V

VC2500 Vertical Powered Capstans 12/24V Designed to suit vessels up to 27m (88ft) the Muir range of capstans provide reliable and heavy duty operation for mooring, warping and anchoring for all recreational and commercial applications.Efficient and quick they can be installed independently or as a complete system with windlasses.Manufactured to the highest quality standard, featuring heavy chrome and gear drive assembly. Accommodating varying deck thicknesses, they are popular for line hauling and fishing purposes. Available in 12 & 24 volt Features:Deck hugging snag free design Unit can be mounted horizontally Polished 316 Stainless steel on some models Capstan has knurled grip Heavy duty dual direction motor in 12 & 24 Stainless steel shaft Stainless steel mounting bolts Installation/Operation bookletTechnical Specifications:Recommended vessel length: 14-22m Power supply options: 12/24V DC Recommended Muir circuit breaker: 150/100A (12/24V) Motor (watts): 1500W Amps workload: 150/70A (12/24V) Max load: 1185kg Workload: 395kg Max line speed: 15m/min Compatible rope sizes: 10mm (3/8″) & 14mm (9/16″) Auto anchor compatible: No Weight: 25kgInstruction Manual
