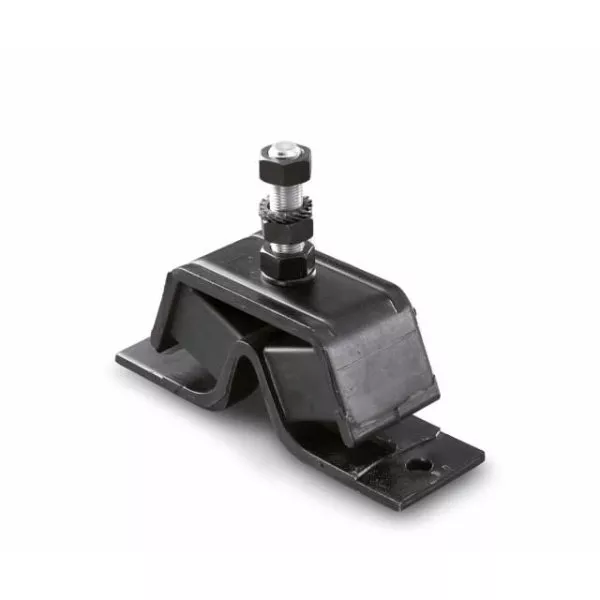

V-Shaped Marine Engine Mount – Max. Weight 40 kg
The V-shaped Silent Marine engine mount operates by utilizing both shear and compression in the rubber component. It consists of two metal parts that are separated by the rubber piece. The installation process involves securing the upper metal part with a pin and attaching the base plate to the chassis using two holes. This engine mount is ideal for applications with low suspended unit loads, offering high deflection to achieve exceptional vibration isolation.
- Pitch: 173 mm
- Pin size: M16
- Max. weight: 40 kg
- Rigidity (in Shore): 40
