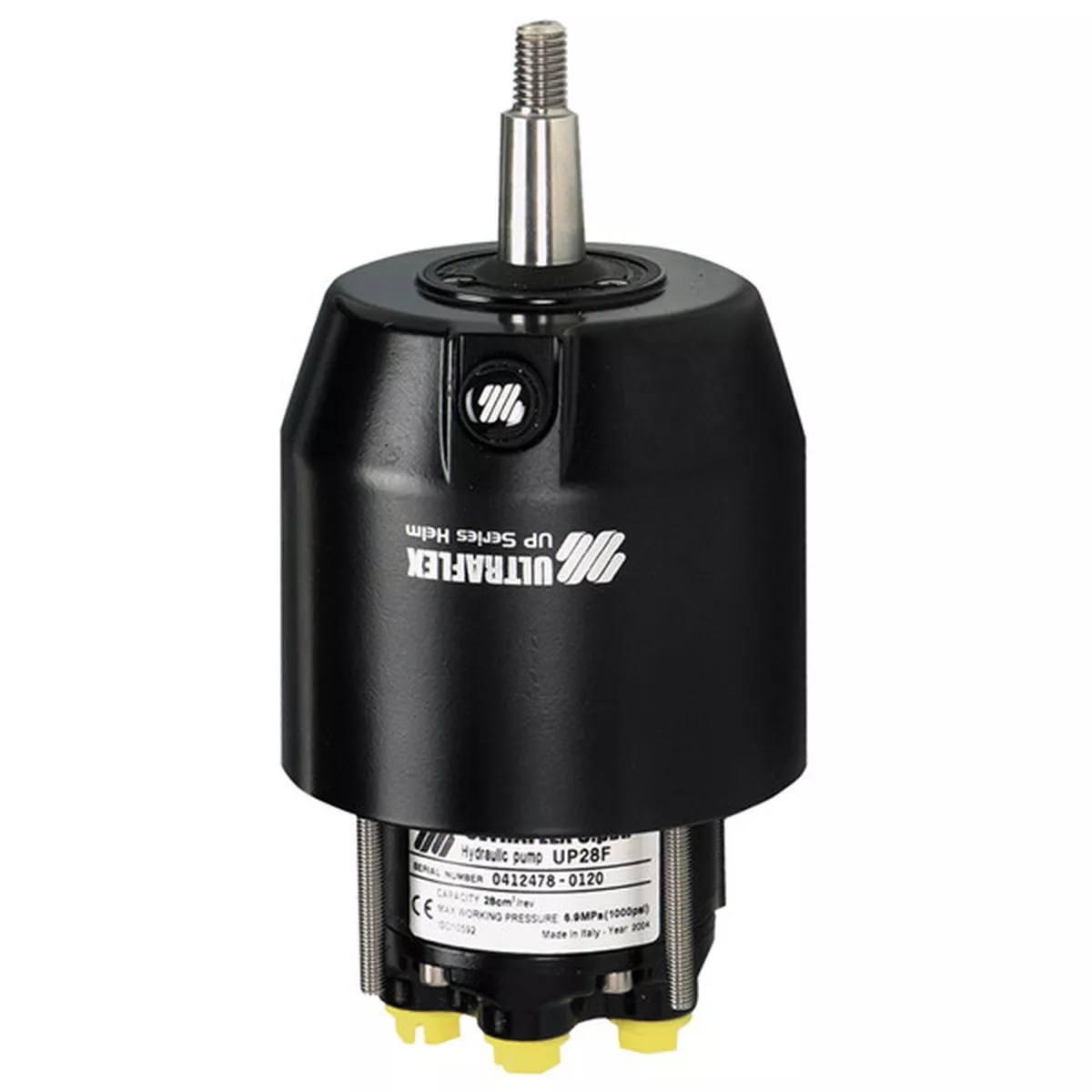

Ultraflex Front Mount Helm Pumps – 83925

Ultraflex UP25F Front Mount 25ccAvailable in four different displacement sizes.Compact design.Ball bearing piston race.Built-in lock valve for positive rudder lock.Integral relief valve for over-pressure protection.3/4″ tapered stainless steel shaft.Easily accessible lock valve and shaft seal for replacement.Cast iron rotor for greater durability and longer life.1/4″ NPT fitting for 3/8″ tube.Includes elbow fittings.PART NO.83925WEIGHT:5kgRelief Valve Setting:70Bar – 1000PSINo. of Pistons:5Model:UP25FDisplacement / Revolution:25cc – 1.5cu.inMax Wheel Diameter:710mmNote:X64 – 83949 square flange or X57 – 83954 round flange allows the helm pumps to be installed in an intermediate dashboard position. Part numberDescriptionWeightModelSAW-83925Ultraflex UP25F Front Mount 25cc5kgUP25F
