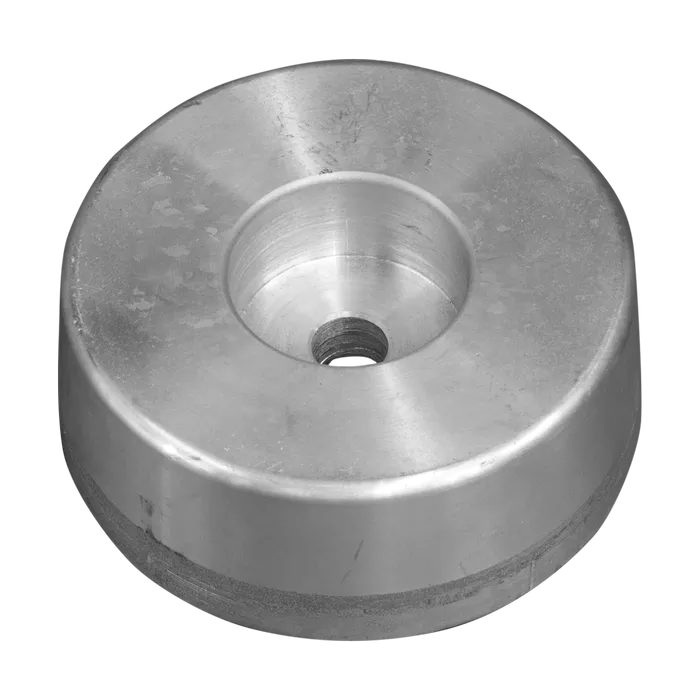

Tecnoseal Zinc Stern Disc Sacrificial Anodes without Insert – Ø100–145 mm
The Tecnoseal Zinc Stern Disc Anodes are sacrificial anodes for stern applications, supplied as anode only, without insert.
The range includes four zinc models with outside diameters from Ø100 to Ø145 mm, heights from 25 to 40 mm and weights from 1.88 to 4.00 kg. The available models differ in outside diameter, height, Ø1 recess diameter and Ø2 mounting-hole diameter. Tecnoseal 00150 is also referenced as Osculati 43.210.01. Tecnoseal 00155 corresponds to Osculati 43.210.05 and is also listed in the Tecnoseal catalogue as same as 02462.
Key Features
- Brand: Tecnoseal
- Product Type: Stern disc sacrificial anode
- Material: Zinc
- Supply: Anode only, without insert
- Available Models: 00150, 00155, 00155-1 and 00155-2
- Cross References: Tecnoseal 00150 / Osculati 43.210.01; Tecnoseal 00155 / Osculati 43.210.05
- Equivalent Tecnoseal Reference: 00155 / 02462
- Diameter Range: Ø100–145 mm
- Height Range: 25–40 mm
- Weight Range: 1.88–4.00 kg
- Ø1 Range: 38–40 mm
- Ø2 Range: 10–12.5 mm
Available Models and Technical Specifications
| Tecnoseal Code | Osculati Reference | Other Reference | Weight | Diameter (Ø) | Height (h) | Ø1 | Ø2 |
|---|---|---|---|---|---|---|---|
| 00150 | 43.210.01 | — | 1.96 kg / 1960 g | 100 mm | 40 mm | 40 mm | 12.5 mm |
| 00155 | 43.210.05 | Same as 02462 | 1.88 kg / 1880 g | 120 mm | 25 mm | 40 mm | 10.5 mm |
| 00155-1 | — | — | 4.00 kg / 4000 g | 145 mm | 35 mm | 40 mm | 10 mm |
| 00155-2 | — | — | 2.80 kg / 2800 g | 135 mm | 29 mm | 38 mm | 10.5 mm |
Tecnoseal 00150 / Osculati 43.210.01 – Ø100 × 40 mm
- Tecnoseal Code: 00150
- Osculati Reference: 43.210.01
- Material: Zinc
- Supply: Anode only, without insert
- Diameter: Ø100 mm / 3.94 in
- Height: 40 mm / 1.57 in
- Ø1: 40 mm / 1.57 in
- Ø2: 12.5 mm / 0.49 in
- Weight: 1.96 kg / 1960 g / 4.32 lb
Tecnoseal 00155 / Osculati 43.210.05 / Tecnoseal 02462 – Ø120 × 25 mm
- Tecnoseal Code: 00155
- Osculati Reference: 43.210.05
- Equivalent Tecnoseal Reference: 02462
- Material: Zinc
- Supply: Anode only, without insert
- Diameter: Ø120 mm / 4.72 in
- Height: 25 mm / 0.98 in
- Ø1: 40 mm / 1.57 in
- Ø2: 10.5 mm / 0.41 in
- Weight: 1.88 kg / 1880 g / 4.14 lb
Tecnoseal 00155-1 – Ø145 × 35 mm
- Material: Zinc
- Supply: Anode only, without insert
- Diameter: Ø145 mm / 5.71 in
- Height: 35 mm / 1.38 in
- Ø1: 40 mm / 1.57 in
- Ø2: 10 mm / 0.39 in
- Weight: 4.00 kg / 4000 g / 8.82 lb
Tecnoseal 00155-2 – Ø135 × 29 mm
- Material: Zinc
- Supply: Anode only, without insert
- Diameter: Ø135 mm / 5.31 in
- Height: 29 mm / 1.14 in
- Ø1: 38 mm / 1.50 in
- Ø2: 10.5 mm / 0.41 in
- Weight: 2.80 kg / 2800 g / 6.17 lb
Dimensions for Model Selection
- Ø: Outside diameter
- h: Anode height
- Ø1: Recess diameter
- Ø2: Mounting-hole diameter
For replacement selection, compare the outside diameter, height, Ø1 and Ø2 dimensions and anode weight with the existing installation.
