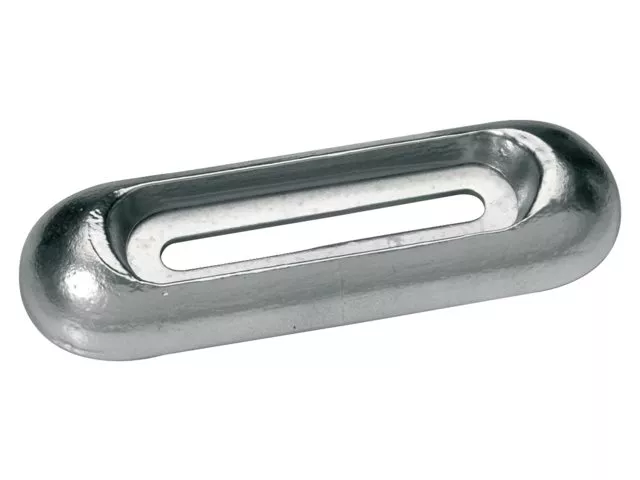

Talamex Zinc Anodes with Screw Mounting – 1.20 / 2.40 kg
The Talamex zinc anodes with screw mounting are sacrificial marine anodes available in two configurations identified in the catalogue as Ref. 1 and Ref. 2.
Talamex 45.800.014 measures 200x65x35 mm, uses a 12×110 mm mounting slot and weighs 1.20 kg. The larger 45.800.022 measures 320x65x35 mm, has a 160 mm fixing dimension and a 12×65 mm mounting feature, and weighs 2.40 kg.
Available Models
| Talamex Code | Ref. | A | B | C | D | Mounting | Weight |
|---|---|---|---|---|---|---|---|
| 45.800.014 | 1 | 200 mm | 65 mm | 35 mm | – | 12×110 mm | 1.20 kg |
| 45.800.022 | 2 | 320 mm | 65 mm | 35 mm | 160 mm | 12×65 mm | 2.40 kg |
Key Features
- Brand: Talamex
- Type: Sacrificial anode with screw mounting
- Material: Zinc
- Available Configurations: Ref. 1 and Ref. 2
- Length: 200 or 320 mm
- Width: 65 mm
- Height: 35 mm
- Weight: 1.20 or 2.40 kg
Select the required version according to the dimensions and mounting configuration.
