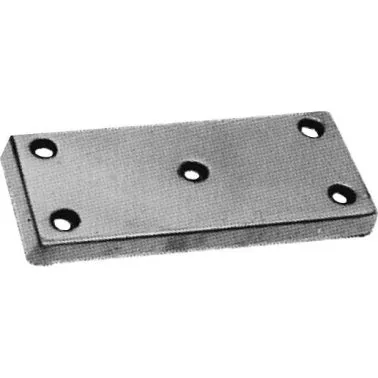

Super Marine Zinc Bolt-On Plate Anodes – 65–300 mm
The Super Marine zinc bolt-on plate anodes are designed for sacrificial corrosion protection in marine installations. The range includes six dimensional variants with different lengths, widths, heights, mounting centre distances and zinc weights.
The anodes use a two-point bolt-on mounting configuration. Select the appropriate version according to the required overall dimensions and mounting centre distance.
Available Models
| VDM Code | Dimensions | Centre Distance | Weight |
|---|---|---|---|
| ANO1701 | 65x65x10 mm | 51 mm | 0.20 kg |
| ANO1702 | 100x45x9 mm | 50 mm | 0.28 kg |
| ANO1708 | 130x50x18 mm | 77 mm | 0.70 kg |
| ANO1704 | 155x65x15 mm | 118 mm | 0.90 kg |
| ANO1705 | 155x75x25 mm | 80 mm | 1.70 kg |
| ANO46200 | 300x150x28 mm | 160 mm | 8.00 kg |
Key Features
- Brand: Super Marine
- Material: Zinc
- Type: Bolt-on plate anode
- Length Range: 65–300 mm
- Width Range: 45–150 mm
- Height Range: 9–28 mm
- Centre Distance Range: 50–160 mm
- Weight Range: 0.20–8.00 kg
Select the correct anode according to the overall dimensions and mounting centre distance required for the installation.
