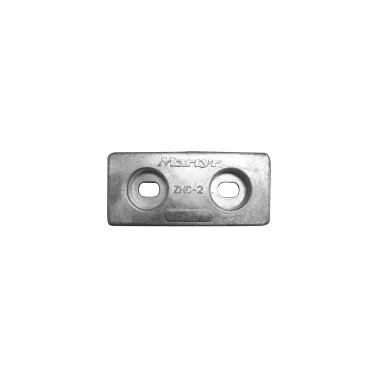

Super Marine Zinc Bolt-On Bar Anodes – 75–455 mm
The Super Marine zinc bolt-on bar anodes are designed for sacrificial corrosion protection in marine installations. The range includes ten dimensional configurations with different overall lengths, widths, heights, mounting centre distances and zinc weights.
The correct version should be selected according to the available mounting space and the required bolt centre distance.
Available Models
| VDM Code | Length | Width | Height | Centre Distance | Weight |
|---|---|---|---|---|---|
| ANO155 | 146 mm | 64 mm | 19 mm | 71 mm | 1.004 kg |
| ANO21520 | 147 mm | 66 mm | 23 mm | 70 mm | 1.2 kg |
| ANO13200 | 210 mm | 100 mm | 30 mm | 100 mm | 3.78 kg |
| ANO00303M | 210 mm | 70 mm | 28 mm | 250 mm | 2.2 kg |
| ANO1905 | 150 mm | 60 mm | 60 mm | 80 mm | 1.2 kg |
| ANO1930 | 300 mm | 65 mm | 65 mm | 200 mm | 3 kg |
| ANO96200 | 200 mm | 65 mm | 32 mm | 110 mm | 1.30 kg |
| ANO1945 | 455 mm | 94 mm | 40 mm | 230 mm | 7 kg |
| ANO1950 | 450 mm | 105 mm | 50 mm | 230 mm | 11 kg |
| ANO58300 | 75 mm | 34 mm | 16 mm | 135 mm | 0.25 kg |
Key Features
- Brand: Super Marine
- Material: Zinc
- Type: Bolt-on bar anode
- Length Range: 75–455 mm
- Width Range: 34–105 mm
- Height Range: 16–65 mm
- Weight Range: 0.25–11 kg
Select the appropriate anode according to the required length, width, height and mounting centre distance.
