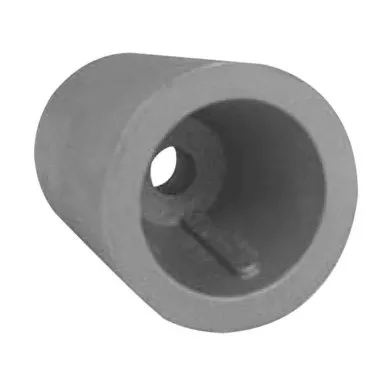

Super Marine Aluminium Conical Key Propeller Nut Anode – Ø22/25 to Ø50 mm, M16–M36 Thread
The Super Marine aluminium conical key propeller nut anode is designed to provide effective corrosion protection for propeller shaft assemblies. Manufactured from aluminium, it acts as a sacrificial anode to protect critical propulsion components in marine environments.
These anodes are designed for installation on propeller nut systems and are available in multiple sizes to match different shaft diameters and thread specifications.
Key Features
- Aluminium conical key propeller nut anode
- Material: Aluminium
- Lightweight sacrificial anode for corrosion protection
- Designed for marine propulsion systems
- Available for multiple shaft diameters and thread sizes
- Supplied on plate
Technical Specifications
| Shaft Diameter | Diameter | Height | Thread | Weight | SKU | EAN |
|---|---|---|---|---|---|---|
| Ø22/25 mm | 33 mm | 39 mm | 16 x 150 | 0.049 kg | ANOAH225 | 3600580670296 |
| Ø30 mm | 44 mm | 52 mm | 20 x 150 | 0.128 kg | ANOAH230 | 3600580670944 |
| Ø35 mm | 44 mm | 52 mm | 24 x 200 | 0.11 kg | ANOAH235 | 628309191702 |
| Ø40 mm | 50 mm | 65 mm | 24 x 200 | 0.186 kg | ANOAH240 | 3600580672931 |
| Ø45 mm | 59 mm | 74 mm | 30 x 200 | 0.3 kg | ANOAH245 | 3600580672948 |
| Ø50 mm | 71 mm | 84 mm | 36 x 300 | 0.46 kg | ANOAH250 | 3600580672955 |
These aluminium anodes provide an efficient and lightweight solution for protecting propeller shaft systems and should be inspected and replaced periodically as part of routine maintenance.
