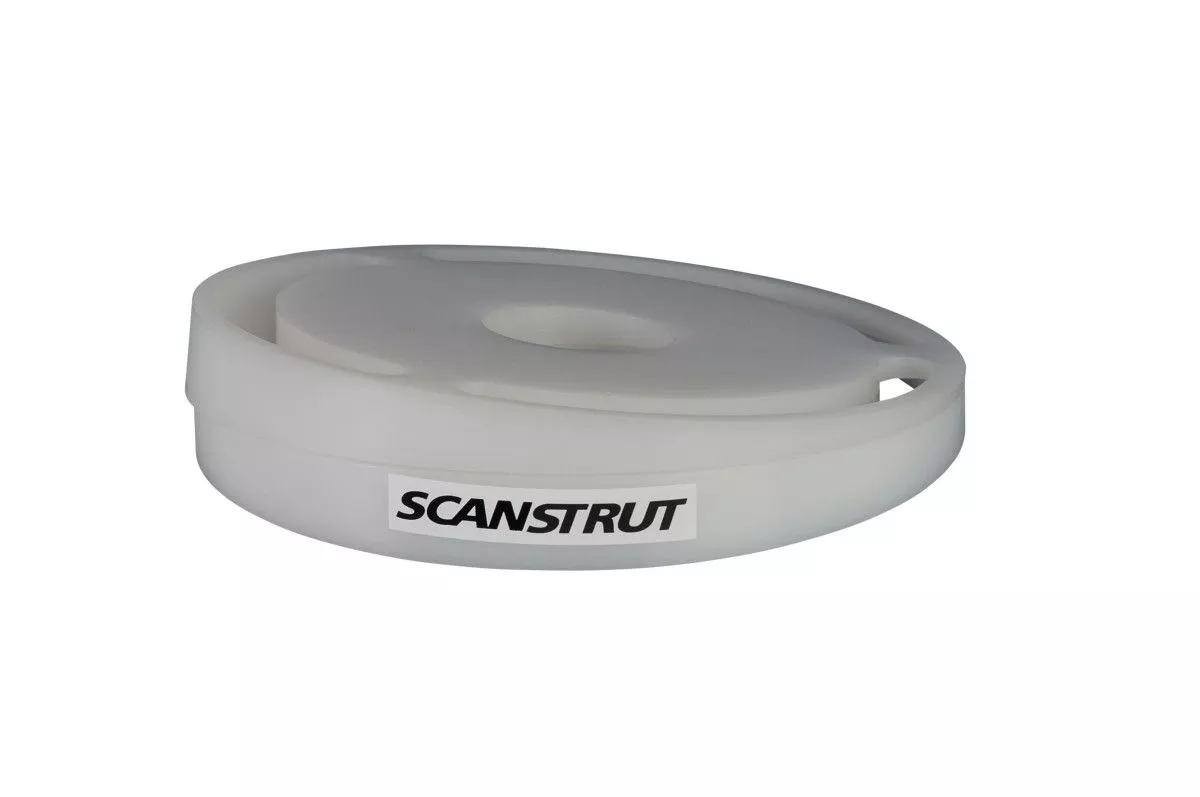

Scanstrut SC50 – Adjustable Base Wedge 0-12°
Satcom antennas require a flat horizontal surface to function correctly, but achieving this on many powerboats can be tricky. Custom interface plates are often needed, which are both expensive and time-consuming to create. The SC50 wedge resolves this by allowing a perfectly level mounting on slopes ranging from 0° to 12°.
- The wedge features a cleverly engineered counter-rotate angled disc that provides a horizontal top surface for antenna installation.
- Designed for compatibility with SC35, SC45, SC45R, and SC65 Satcom mounts, ensuring a stable and level installation on any vessel.
- Watertight base seals are included to protect the installation from water ingress.
- Provides a level mounting surface on slopes between 0° and 12°.
- Creates the ideal horizontal top surface for your Satcom antenna.
- Material: Marine-grade polymer
- Colour: White
- Diameter: 200mm (7.9″)
- Mounting Gasket Included: Yes
- Design: Aft (0-12-degree rake)
- Item number: SCSC50
