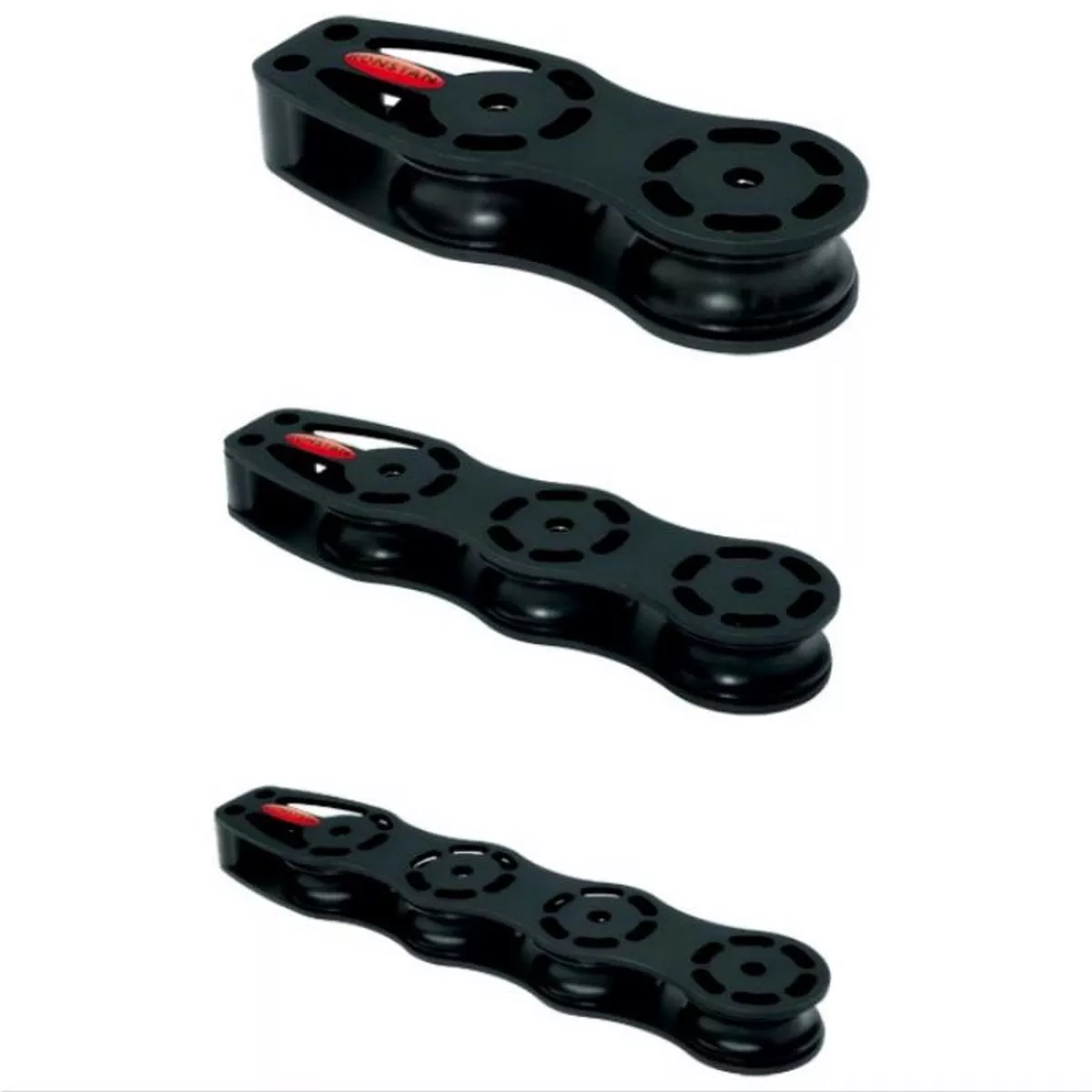

Ronstan Series 60 AP Deck Organiser – Sheave

Ronstan Series 60 AP Deck Organiser – SheaveDeck organisers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal.The deck organisers have alloy cheeks. All sizes can be stacked to create double versions – MWL of the top sheaves must not exceed 50% of the total block load rating.Features:Lightweight design with cheek cut outs for easy bearing maintenanceThrough hub mounting for maximum strengthAll-purpose bearing system provides maximum static load capacityMount with 4 x 8mm (5/16) fasteners, (not supplied)Hole centres at 70mm (1 3/4″)Part NumberNo. of SheavesSheaveMax. Rope Fastener M.W.L.B. L.WeightRON-RF61821260mm14mm8mm1000kg2000kg271gRON-RF61831360mm14mm8mm1000kg2000kg392gRON-RF61841460mm14mm8mm1000kg2000kg511g
