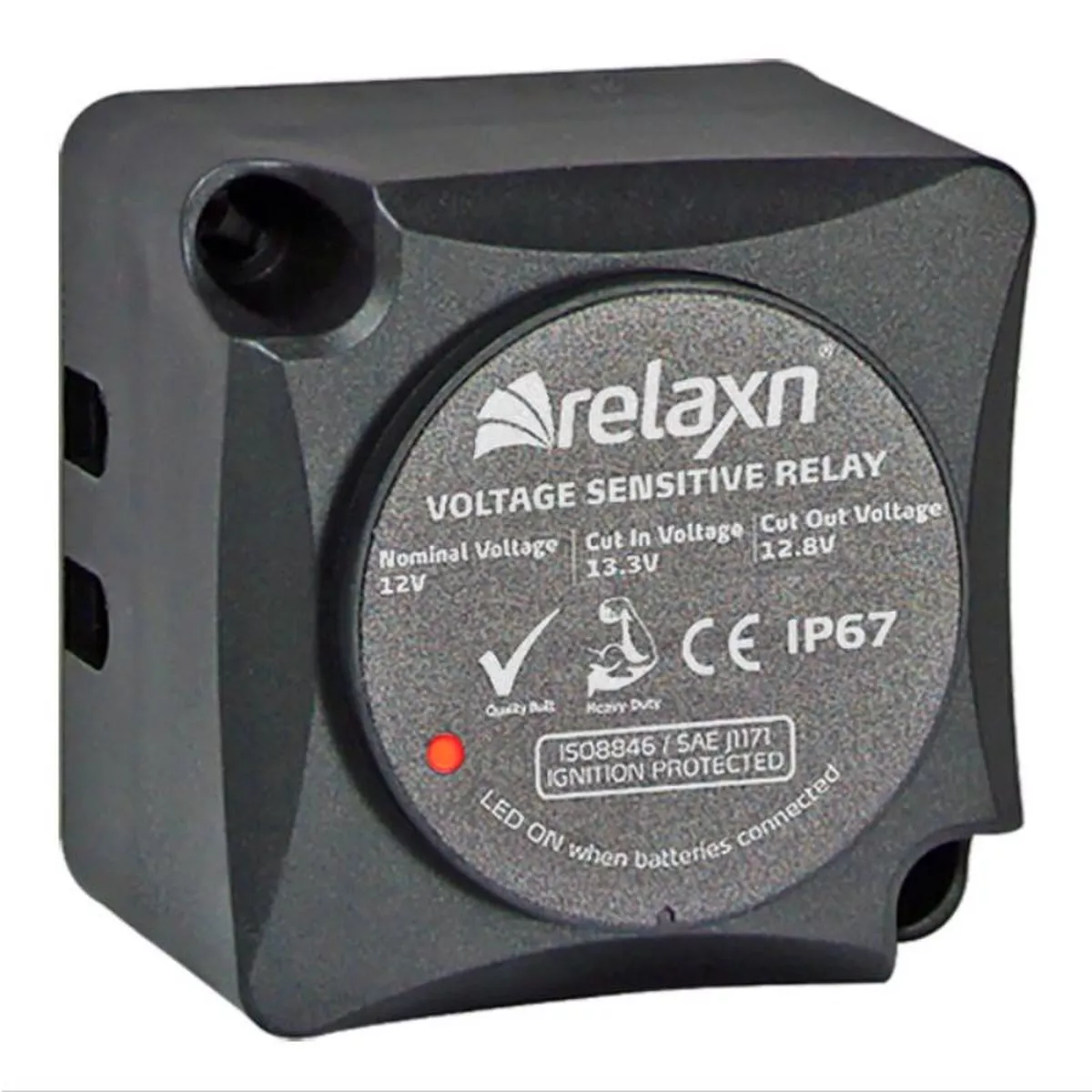

Relaxn Voltage Sensitive Relay – 12V

Ideal for dual battery systems or to switch high current appliances. Suits for ATV, boats, RVs, marine vehicle, caravan and truck.VSR allows 2 batteries to be charged at the same time.No voltage drops comparing to battery isolator diodes (0.6V).Robust glass fiber reinforced nylon enclosure.Built-in LED indication (ON when VSR engages).Surface or panel mount options provide flexibility when installing.Optional Storage Mode allows zero power consumption when the engine is off.CE ISO8846 / SAEJ1171 Ignition Protected.Patented Made in Taiwan.Part NumberCut Out VoltageContinuous RatingIntermittent RatingPower ConsumptionTerminal StudsNominal VoltageCut In VoltageW x H x DSAW-5308312.8V125 Amps140 Amps10mA (Standby) / 330mA (Engage) / 0mA (Storage)M612V13.3V69mm x 69mm x 58mm
