Raymarine Type 3/12v Hydraulic Linear Drive

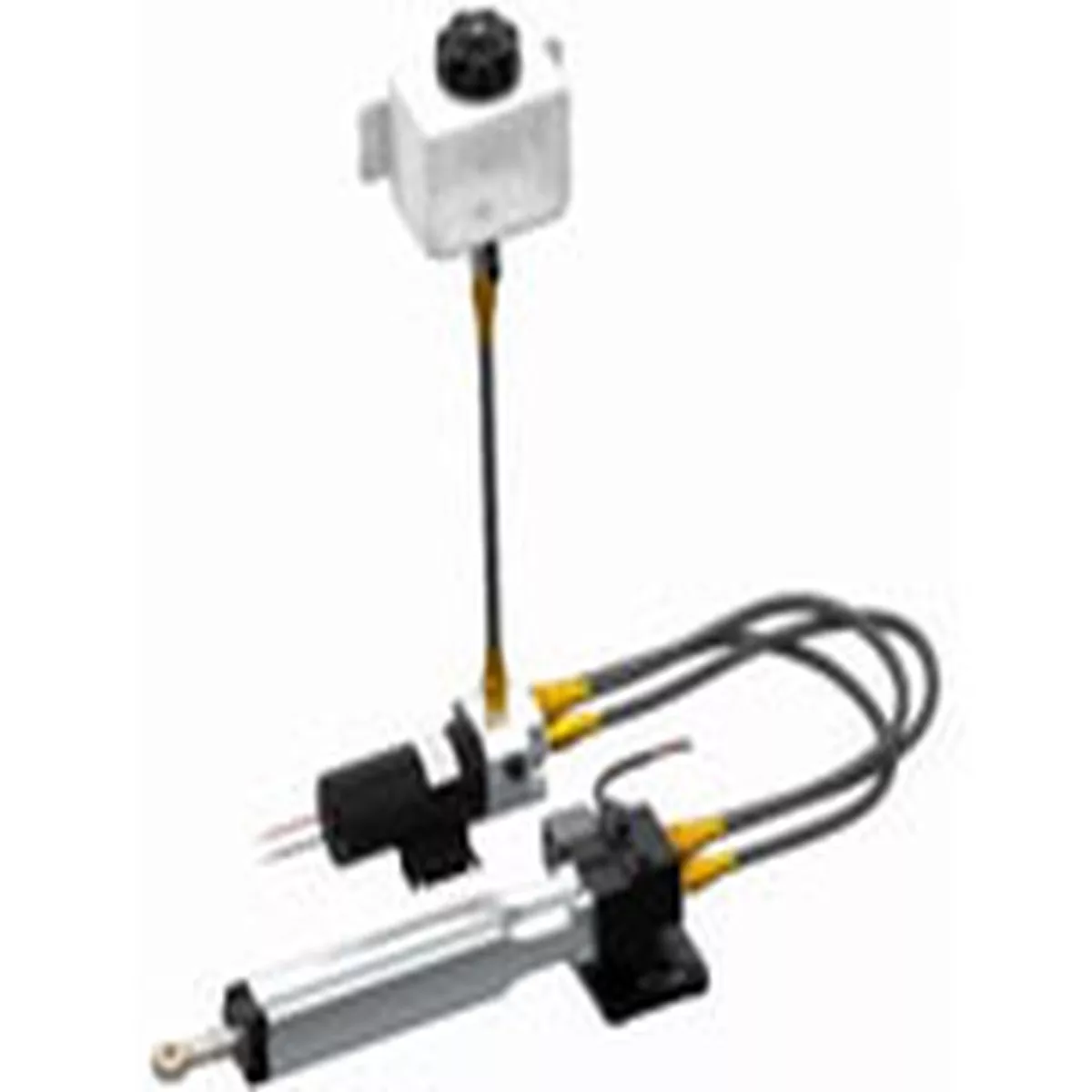

Raymarine Type 3/12v Hydraulic Linear Drive/ M81202TheHydraulic Linear Pumpis a drive unit for Autopilot Systems, it connects to the rudderstock via an independent tiller arm. This item is a self-contained hydraulic steering systemconsisting of a reversing pump, reservoir and hydraulic ram, mainly designed for larger mechanically steeredvessels over 20,000kg.Type 3 (12v)Maximum boat displacement – 35,000 kgPeak thrust – 1,200 kgMaximum stroke – 300 mmHard-over to hard-over times – 10 secondsFor use withACU-400 Actuator Control UnitMANUALS AND GUIDES
