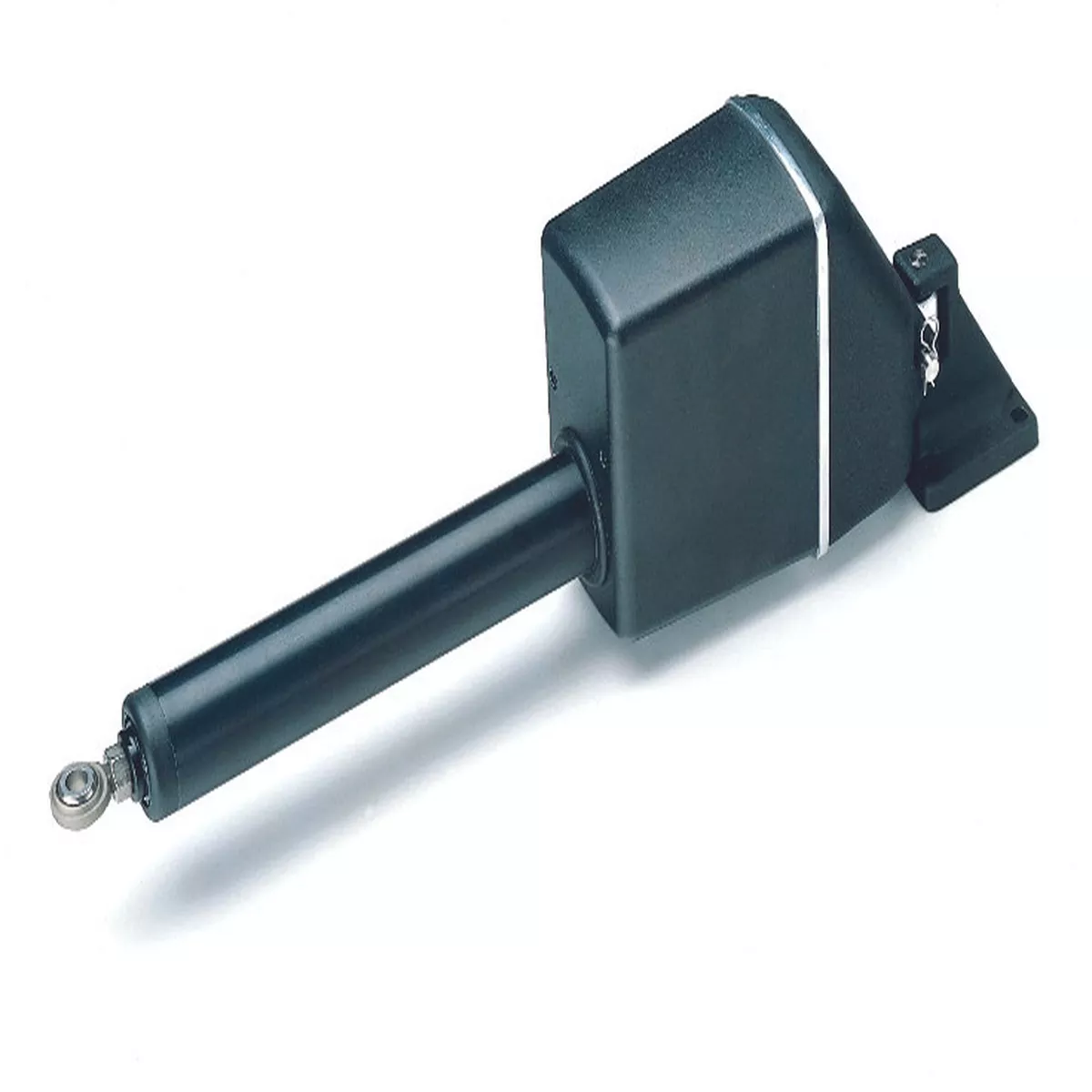

Raymarine Type 2/24v Short Shaft Linear Drive

Raymarine Type 2/24v Short Shaft Linear Drive/ M81133 The Mechanical Linear Drive is a popular choice for sailing vessels, as they provide powerful thrust, fast hard-over times and quiet operation. The unit is mounted below-deck and moves the rudder directly by pushing the tiller arm or rudder quadrant.Type 2 (24v) Maximum boat displacement – 15,000 kg (33,000 lb) Peak Thrust – 480 kg (1,050 lb) Maximum stroke – 300 mm (12″) Hard-over to hard-over times – 11 seconds Power consumption – 66-96 W For use withACU-400 Actuator Control Unit MANUALS AND GUIDES
