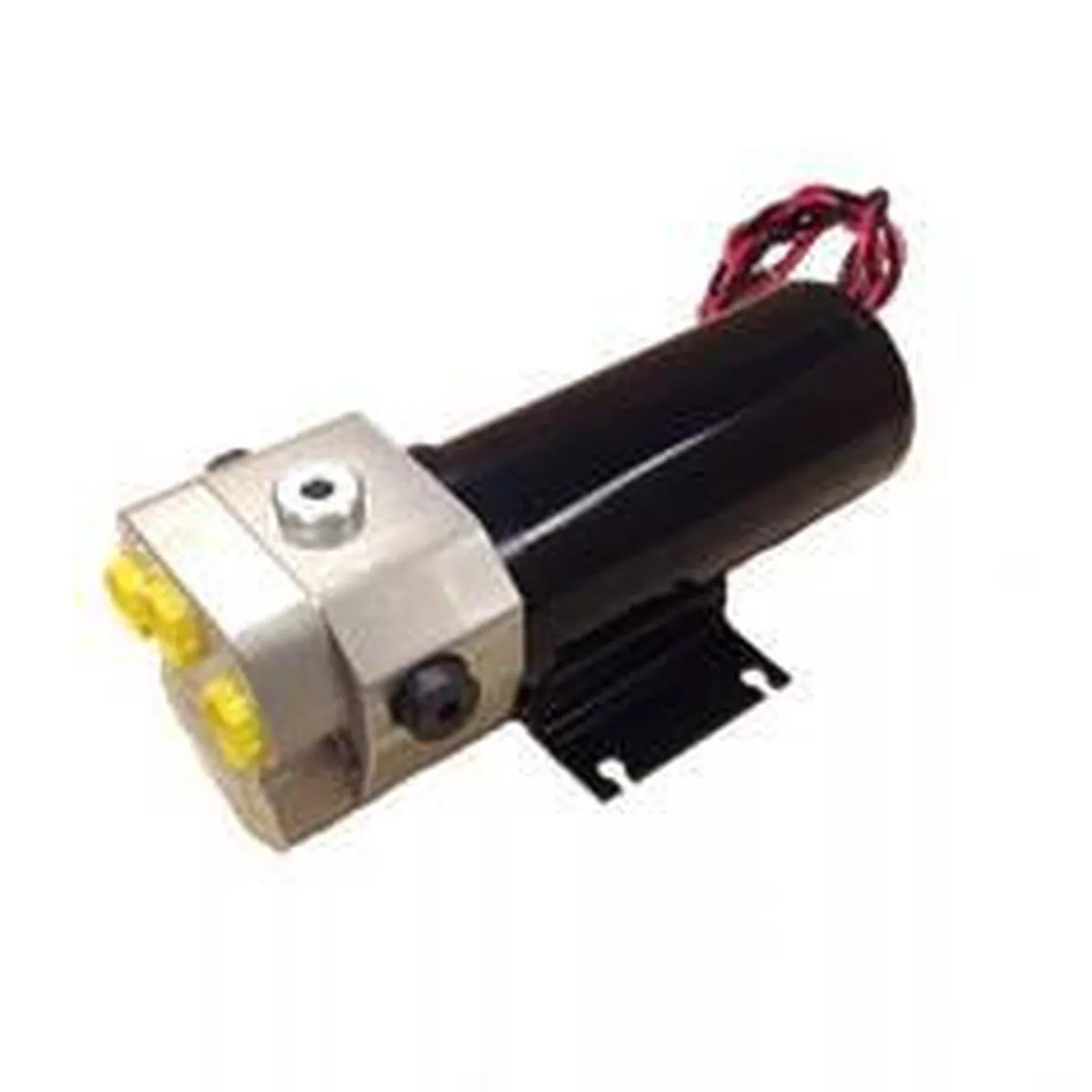

Raymarine Type 0.5/12v Hydraulic Pump

Raymarine Type 0.5/12v Hydraulic Pump/ E12139This Hydraulic Pump is built to operate the steering mechanism of the boat playing an important part in a Raymarine autopilot system. Designed for use on boats with an existing hydraulic steering system or for use in a boat with mechanical steering in conjunction with a secondary steering ram. Built with a precision gear pump and a check valve driven by a servo motor.0.5L (12v)Ram Capacity – 50cc-110cc (3.1in36.7in3)Maximum Stall Pressure at 12V – 50bar (750psi)Peak Flow Rate (No Load) – 1000cc/min (67in3/min)For use with ACU-100 Actuator Control UnitMANUALS AND GUIDES
