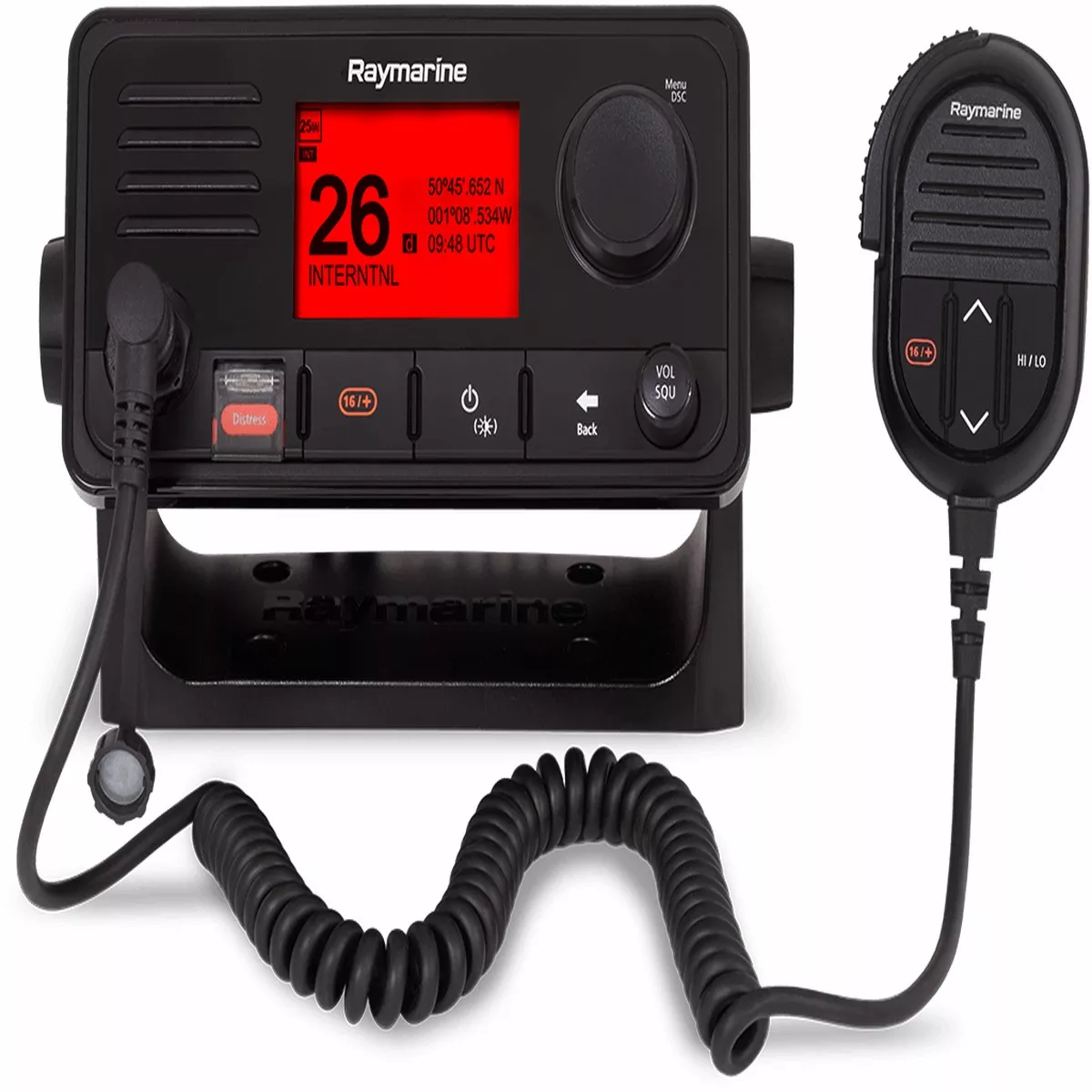

Raymarine Ray73 VHF Radio

Raymarine Ray73 VHF Radio |E70517The Raymarine Ray73 VHF Radio is communications central for your boat with built-in VHF, AIS receiver and loudhailer capabilities. Built on our full-sized marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability. When connected to an optional hailing horn, the Ray73 can generate automatic fog signals and work as a public address announcement system.Full-sized marine VHF with Digital Selective CallingBuilt-in AIS receiver provides target data for chartplotter, radar, and instrumentsFog signaling and public address functions with optional hailing horn (M95435)Wired or wireless expansion with optional RayMic handset stationsBuilt-in GPS/GNSS receiver with a connection point for an optional external antennaNMEA2000 and NMEA0183 networking for integration with onboard systemsAudio output connection for optional passive remote speaker (A80542)Surface and trunnion mount kits includedStyled to compliment the Axiom family of multifunction displaysWaterproof Rating: IPx6 & IPx7Connections: 1x NMEA 0183 | 1x SeaTalkng/ NMEA 2000 | 1x Front Fistmic connection | 1x Rear connection for 2nd station | 1x Audio (RCA) | 1x GNSS (GPS) antenna (TNC)Operating Voltage Range: 9 Vdc to 16 VdcNominal Supply Voltage: 12 V dc (Reverse polarity and over voltage protection)Channels: 72 | All available US, International and Canadian VHF marine bandsFrequency Range: 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)Frequency Stability: +/- 1.5 ppmChannel Spacing: 12.5 kHzPower Output: Low power setting – 1 W | High power setting – 25 WAntenna Impedance: 50 Ohms (typical)Receiver Type: Double conversion super heterodyneHum and Noise: Better than 40 dBAudio Distortion: Less than 10%Base Station Speaker Power Output: 2.5W (8)Fistmic Speaker Power: 1W (16)External Speaker Power: 5W (8)Handset Speaker Power Output: 1W (16)Hailer Speaker Power Output: 25W (4) / 12W (8)Cold Start: <2 minutesReceiver IC Sensitivity: 167 dBm (Tracking) / 148 dBm (Acquisition)GNSS Compatibility: GPS | GLONASS | *BeidouRefresh Rate: 10 Hz (10 times per second Concurrent GNSS)Antenna: Internal – Ceramic chip mounted near top of unit | External – Passive antenna connection via TNC connectorMANUALS & GUIDES*If you have trouble opening the pdf file, please try installing Adobe Acrobat reader on your device.
