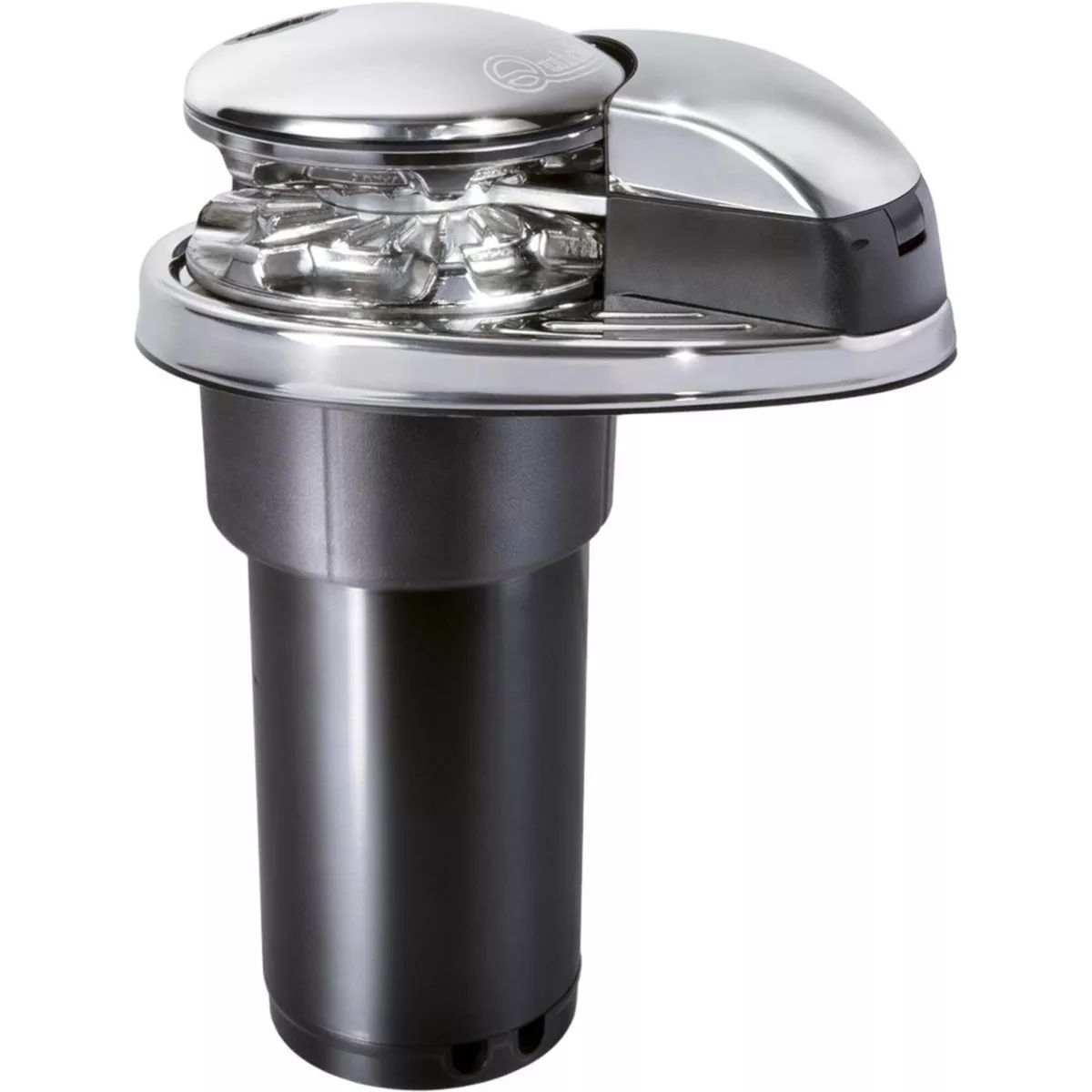

Quick Prince DP2E 1000 Windlass 8mm 800w Without Drum

Quick Prince DP2E 1000 Windlass 8mm 800w Without DrumThe Quick DP2E Prince 1000 vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16″) gypsy which is suitable for 8mm ISO chain and a 1/2″ rope.Material: Stainless SteelPrimary Construction: Stainless SteelSuitable For: Chain and RopeBoat Size: 7 to 12 metres in lengthGypsy Size: 8mmBrand: QuickSeries: Prince DP2EModel: 1000Voltage Description: 12V DCWattage: Motor Power: 800WWorking Load: 95kg (209 lb), Maximum: 290kg (639 lb)Maximum Pull Load: 820kg (1807.8 lb)Maximum Chain Speed: 22.5 m/min (73.8 ft/min), At Working Load: 15.2 m/min (49.9 ft/min)Amps Description: Current Absorption At Working Load: 84AFuse: 80A Protection Circuit BreakerHeight Description: 287.5mm (11-5/16″)Width: 196mm (7-23/32″)Depth: 145.4mm (5-23/32″)Size: Motor Cable: 25mm2 (AWG3)In the Box:Contactor Units, Nylon Handle, Drilling Template, User ManualMANUALS AND GUIDES
