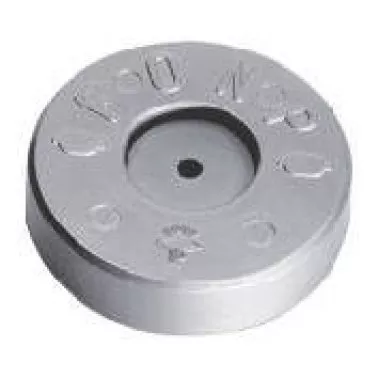

Plastimo Zinc Transom Anodes – Ø135–140 mm, 2.5–4.5 kg
The Plastimo zinc transom anodes are sacrificial anodes designed for installation on marine transom assemblies. The range includes five configurations with different diameters, heights, mounting arrangements and weights.
The zinc material is specified by Plastimo as compliant with MIL-A-18001K. Available versions range from 2.5 to 4.5 kg.
Available Models
| Plastimo Code | OEM P/N | Diameter | Height | Width | Weight |
|---|---|---|---|---|---|
| 420909 | NC012 | 135 mm | 30 mm | 135 mm | 2.5 kg |
| 420907 | NC005 + BOUCHON COUP | 136 mm | 55 mm | – | 4.5 kg |
| 420908 | NC004 | 136 mm | 55 mm | 130 mm | 4.5 kg |
| 420902 | NC014 | 140 mm | 40 mm | 140 mm | 3.2 kg |
| 420911 | – | 140 mm | 35 mm | – | 3.4 kg |
Additional Mounting Details
- 420909: Ø14 mm mounting hole according to the supplied product data
- 420902: Ø13 mm mounting hole according to the supplied product data
- 420908: Supplied configuration includes a joint
Key Features
- Brand: Plastimo
- Material: Zinc
- Zinc Specification: MIL-A-18001K compliant
- Application: Transom
- Diameter Range: Ø135–140 mm
- Weight Range: 2.5–4.5 kg
Select the appropriate version according to the required dimensions, mounting configuration and OEM reference.
