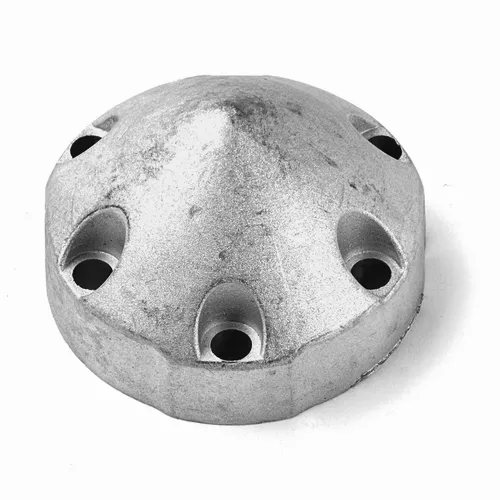

Plastimo Zinc Max Prop Ogive Anodes – Ø43 / Ø84 mm
The Plastimo Max Prop ogive anodes are zinc sacrificial anodes designed for Max Prop applications. The range includes two ogive-shaped variants with different diameters, heights and weights.
Plastimo 401237 has a diameter of 43 mm, a height of 50 mm and a weight of 0.3 kg. It corresponds to OEM reference OG010/6F. Plastimo 401245 has a diameter of 84 mm, a height of 60 mm, a drilling diameter of 46 mm and a weight of 0.8 kg.
Available Models
| Plastimo Code | OEM P/N | Shape | Diameter | Height | Drilling Diameter | Weight |
|---|---|---|---|---|---|---|
| 401237 | OG010/6F | Ogive | 43 mm | 50 mm | – | 0.3 kg |
| 401245 | – | Ogive | 84 mm | 60 mm | 46 mm | 0.8 kg |
Key Features
- Brand: Plastimo
- Material: Zinc
- Zinc Specification: MIL-A-18001K compliant
- Application: Max Prop
- Shape: Ogive
- Available Diameters: Ø43 and Ø84 mm
- Available Weights: 0.3 and 0.8 kg
Select the appropriate version according to the required diameter, height and mounting dimensions.
