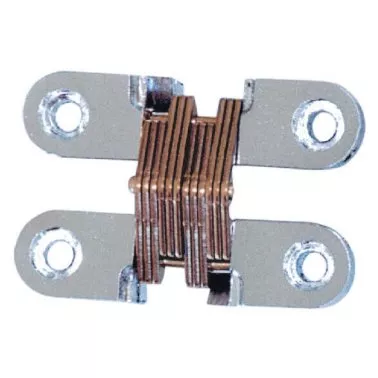

Plastimo 420034 – Flush-fit Concealed Hinges 19 mm
The Plastimo 420034 Flush-fit Concealed Hinges are foldaway hinges that provide a flush and seamless appearance when installed. With a 180° opening capacity, these hinges offer convenient access and smooth operation. They are designed to be compact and easy to integrate into various applications.
The body of the hinge is made from chrome zinc alloy, ensuring durability and corrosion resistance. The small connecting rods and axis are constructed from stainless steel, further enhancing the hinge’s strength and longevity.
Key Specifications:
- Door thickness: 19 mm
- Length (L): 60 mm
- Width (B): 35 mm
- B1: 13 mm
- Height (H): 18.5 mm
- L1: 33 mm
- C1: 47 mm
- C2: 22 mm
- h: 6.5 mm
- t: 6 mm
- C: 1 mm
- X: 3 mm
