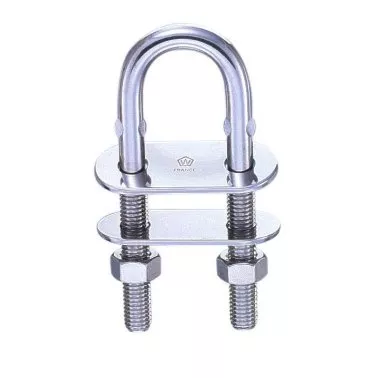

Plastimo 410180 – U-bolt Long Wire ø12
Plastimo 410180 is a U-bolt made of 316 L stainless steel. It comes with two plates and two nuts for easy installation. The U-bolt has the following specifications:
- Stock Ø: 12 mm
- A: 44 mm
- B: 34 mm
- C: 70 mm
- SWL*: 2000 kg
*SWL stands for Safe Working Load. The U-bolt has a breakload capacity of 10000 kg. It requires a tightening torque of 60 Nm. Each pack contains 2 U-bolts.
Additional details:
- Break load: 10000 kg
- SWL: Safe Working Load: 2000 kg
- Rod diameter: 12 mm
- Material: Stainless steel 316 L
- Height: 130 mm
