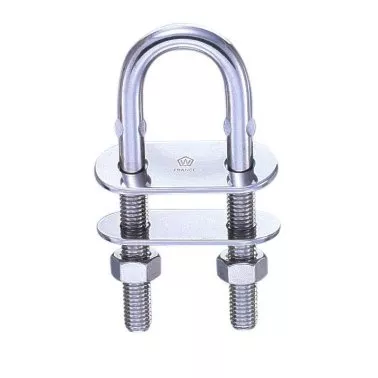

Plastimo 410156 – U-bolt Small Wire ø12 110mm
Introducing the Plastimo 410156 – U-bolt Small Wire ø12 110mm. This U-bolt is made of high-quality 316 L stainless steel and comes with two plates and two nuts. It has a stock diameter of 12 mm, A dimension of 44 mm, B dimension of 34 mm, and C dimension of 50 mm. The U-bolt has a Safe Working Load (SWL) of 2000 kg, with a breakload capacity of 10000 kg. To ensure proper tightening, a torque of 60 Nm is recommended. The product is packaged with two U-bolts.
Here are the specifications:
- Break load: 10000 kg
- SWL (Safe Working Load): 2000 kg
- Rod diameter: 12 mm
- Material: Stainless steel 316 L
- Height: 110 mm
