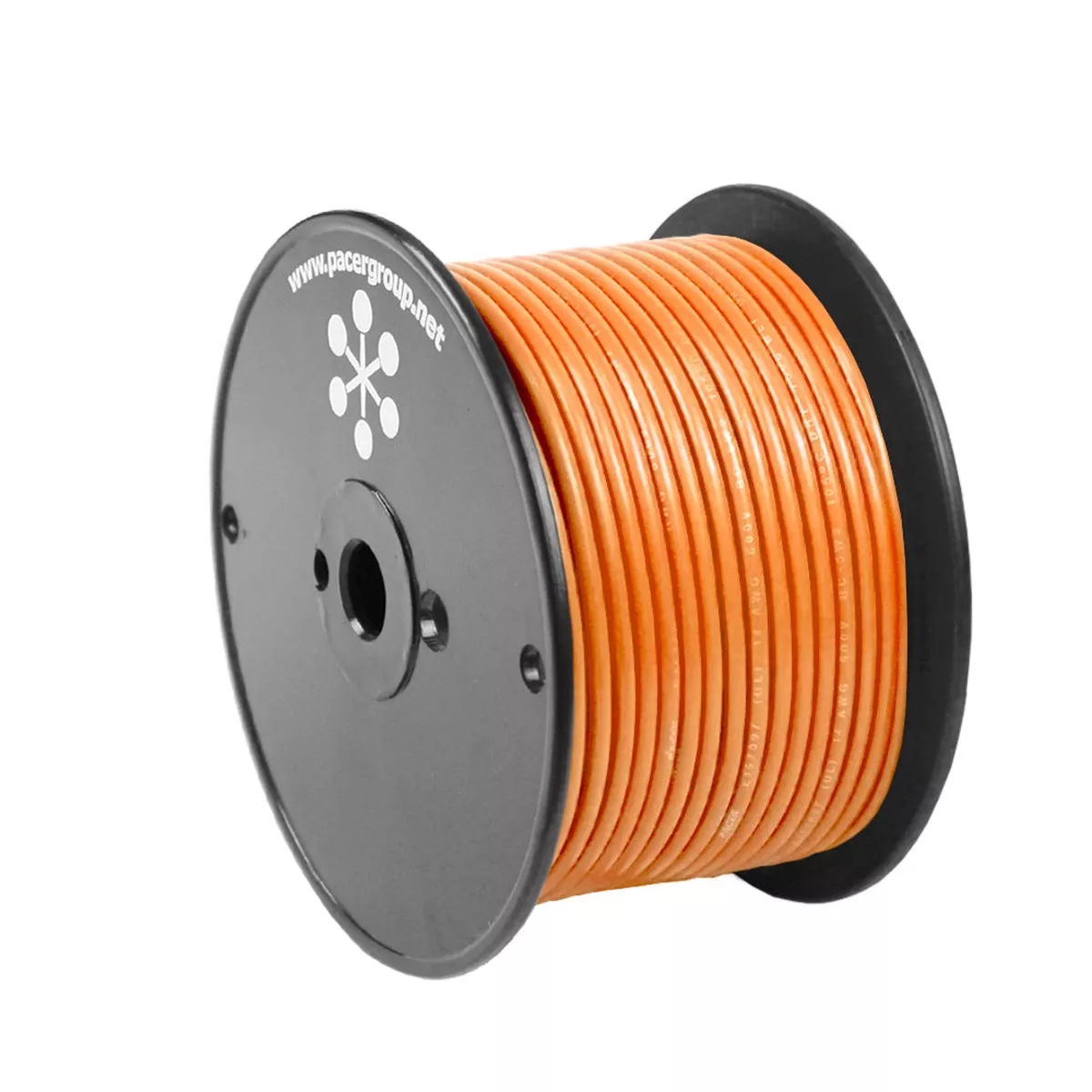

The Orange 14 AWG Primary Wire is meticulously crafted for marine applications, ensuring top-tier performance and reliability in the most challenging boating environments. Manufactured in the USA, this 100-foot marine-grade wire offers exceptional conductivity and longevity, making it an essential component for your vessel’s electrical systems.
Key Features
- Engineered for superior durability, flexibility, and longevity in harsh marine conditions
- Highly flexible design allows knot tying without compromising wire integrity
- Proprietary PVC insulation provides maximum protection against environmental factors
- Ease of installation and a robust design make it the preferred choice among marine professionals
Compliance and Standards
- UL Standard – 1426 BC-5W2
- U.S. Coast Guard – 33 CFR Part 183
- ABYC – E-11.14
- NMMA Certified
Technical Specifications
| Attribute | Details |
|---|---|
| Conductor | Type III annealed finely stranded tinned copper ASTM B172 Class K |
| Insulation | Flexible, color-coded PVC rated for -20C to 105C |
| Voltage Rating | 600 V |
| Resistance To | Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture |
Product Specifications
| Specification | Details |
|---|---|
| Color | Orange |
| Gauge | 14 AWG |
| Length | 100 feet |
| Box Dimensions | 3″ H x 3″ W x 3″ L |
| Weight | 2.2 lbs |
| UPC | 840248202114 |
Additional Resources
Download Brochure (PDF)
Product Video
Note: Sold individually
