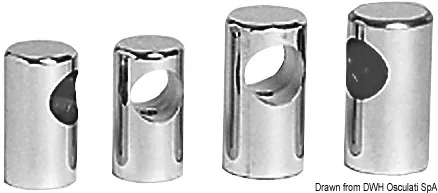

Osculati Precision-Cast AISI 316 Solid Handrail Support – Terminal / Central, Ø22/25 mm
The Osculati solid handrail support range is manufactured from AISI 316 stainless steel and is available in terminal and central configurations for Ø22 mm and Ø25 mm handrail tubing.
The Ø22 mm versions have a Ø30 mm base and a height of 55 mm. The Ø25 mm versions have a Ø35 mm base and a height of 65 mm. All variants are designed for 8 mm studs, with optional stud bolts and nuts available under Osculati code 40.142.08.
Key Features
- Precision-cast solid handrail support
- Made from AISI 316 stainless steel
- Available in terminal and central versions
- Suitable for Ø22 mm and Ø25 mm handrail tubes
- Ø30 mm base and 55 mm height for Ø22 mm versions
- Ø35 mm base and 65 mm height for Ø25 mm versions
- Stud size: 8 mm
- Optional stud bolts and nuts: 40.142.08
Available Versions
| Code | Version | Material | Base Diameter | Height | For Pipe Ø | Optional Stud Bolts and Nuts | Stud Size |
|---|---|---|---|---|---|---|---|
| 41.500.22 | Terminal | AISI 316 SS | Ø30 mm | 55 mm | Ø22 mm | 40.142.08 | 8 mm |
| 41.500.25 | Terminal | AISI 316 SS | Ø35 mm | 65 mm | Ø25 mm | 40.142.08 | 8 mm |
| 41.501.22 | Central | AISI 316 SS | Ø30 mm | 55 mm | Ø22 mm | 40.142.08 | 8 mm |
| 41.501.25 | Central | AISI 316 SS | Ø35 mm | 65 mm | Ø25 mm | 40.142.08 | 8 mm |
Technical Specifications
| Material | AISI 316 stainless steel |
|---|---|
| Construction | Precision-cast solid |
| Versions | Terminal / Central |
| Pipe Diameter Options | Ø22 mm / Ø25 mm |
| Base Diameter | Ø30 mm / Ø35 mm |
| Height | 55 mm / 65 mm |
| Stud Size | 8 mm |
| Optional Stud Bolts and Nuts | 40.142.08 |
