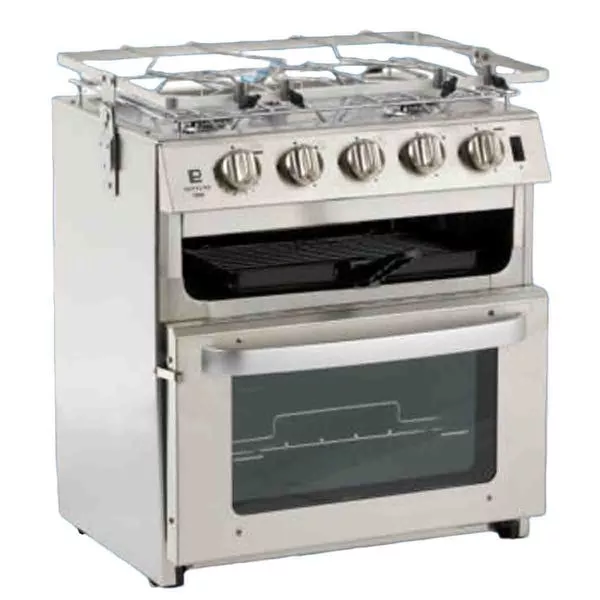

The Neptune 5000
The 5000 range is the largest version of the ranges Leisure Products produce. This range retains the most popular features of the compact 4500 range, but with the option to have a two hob model. This cooker has 3 hobs; 2 standard semi rapide hobs + auxiliary simmer ring, a thermostatically controlled oven, a compact yet powerful grill in it’s own compartment, an electric spark ignition, a door safety catch to prevent the door opening if the boat heels, a sea rail and a gimbal lock. All burners are protected by flame failure safety cut-outs. Can be used on butane or propane.
A) Base to top of sea rail – 620mm
Base to top of spillage tray -545mm
B) Base to top of pan support – 570mm
C) Base to top of gimbal point – 550mm
D) Cooker width – 500mm
E) Gimballed width – 500mm
F) Gimbal arc – 590mm
G) Gimbal point to back stop – 245mm
H) Cooker depth – 460mm
(see labelled image)
2 hob version: 6-02346
Find all spare parts on proteus via; Pan support (16-02200-34), Oven shelf (16-02200-35), Spark generator (16-02200-37), Door seal (16-02200-45), Battery holder (16-02200-44), Burner cap screw (16-02200-12), Semi rapide burner assembly (16-02200-41), Hob Thermocouple (16-02200-3), Semi rapide flame spreader (16-02200-6), Aux spreader (16-02200-10), Semi rapide burner cap (16-02200-7), Aux burner cap (16-02200-11), Auxiliary burner (16-02200-43), Push fit oven thermocouple (16-02200-1), Push fit grill thermocouple (16-02200-2), Grill burner tube (16-02200-30), Control knobs (16-02200-29)
