MME Aluminium Tank Sacrificial Anodes with Mounting Strips

MME Aluminium Tank Sacrificial Anodes with Mounting Strips – 205–1525 mm, AT / ATST

The MME Aluminium Tank Sacrificial Anodes are designed to provide corrosion protection for metal tanks. Manufactured from aluminium, these anodes are available in different body dimensions and mounting strip configurations to accommodate specific installation requirements.

The range includes 28 product variants in 14 dimensional configurations. Each size is available in two versions: AT with a bent-end mounting strip and ATST with a straight mounting strip.

The rectangular aluminium bodies measure from 205 to 1525 mm in length, with widths of 63 or 80 mm and heights of 70 or 95 mm. Mounting strip lengths range from 720 to 2120 mm, depending on the selected model.

Key Features

• Brand: MME
• Product Type: Tank sacrificial anode
• Anode Material: Aluminium
• Body Shape: Rectangular
• Application: Corrosion protection for metal tanks
• Function: Sacrificial corrosion protection
• Mounting Arrangement: Extended mounting strip
• Available Versions: AT and ATST
• AT Version: Bent-end mounting strip
• ATST Version: Straight mounting strip
• Body Length Range: 205–1525 mm
• Available Body Widths: 63 and 80 mm
• Available Body Heights: 70 and 95 mm
• Mounting Strip Length Range: 720–2120 mm
• Available Body Sizes: 14
• Total Product Variants: 28
• Sales Unit: 1 piece

Mounting Strip Versions: AT and ATST

The MME aluminium tank anodes are available in two mounting strip configurations. The versions are identified by their manufacturer model designations.

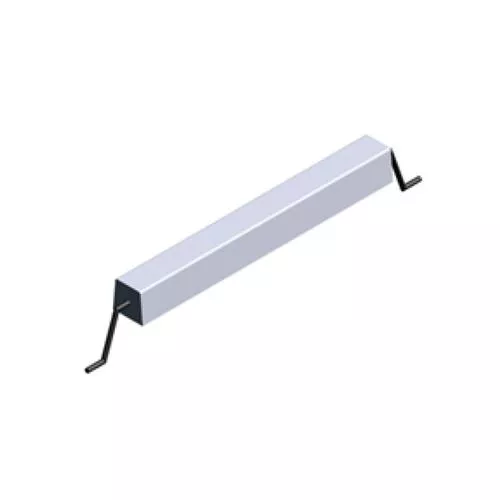

AT – Bent-End Mounting Strip

The AT version features a mounting strip with bent ends. The strip extends from the aluminium anode body and has angled end sections.

• Version: AT
• Mounting Strip Design: Bent ends
• Anode Body Material: Aluminium
• Available Body Sizes: 14

ATST – Straight Mounting Strip

The ATST version features a straight mounting strip extending from both ends of the aluminium anode body.

• Version: ATST
• Mounting Strip Design: Straight
• Anode Body Material: Aluminium
• Available Body Sizes: 14

Corresponding AT and ATST models have identical stated body dimensions and mounting strip lengths. They differ in their mounting strip configuration and manufacturer product identification.

The mounting strip design should be selected according to the required installation arrangement.

Technical Specifications and Available Models

The range includes 14 body sizes, each available in AT and ATST versions. Body dimensions are specified as length × width × height. All dimensions are in millimetres.

Body Dimensions and Size Selection

The MME aluminium tank anode range includes two body width and height configurations: 63 × 70 mm and 80 × 95 mm. Each configuration is available in seven different body lengths.

63 × 70 mm Body Configuration

• MME22AT / MME22ATST: 205 × 63 × 70 mm, strip length 720 mm.
• MME33AT / MME33ATST: 305 × 63 × 70 mm, strip length 800 mm.
• MME71AT / MME71ATST: 610 × 63 × 70 mm, strip length 1150 mm.
• MME87AT / MME87ATST: 762 × 63 × 70 mm, strip length 1310 mm.
• MME116AT / MME116ATST: 1015 × 63 × 70 mm, strip length 1560 mm.
• MME145AT / MME145ATST: 1270 × 63 × 70 mm, strip length 1870 mm.
• MME173AT / MME173ATST: 1525 × 63 × 70 mm, strip length 2120 mm.

80 × 95 mm Body Configuration

• MME45AT / MME45ATST: 235 × 80 × 95 mm, strip length 720 mm.
• MME58AT / MME58ATST: 305 × 80 × 95 mm, strip length 800 mm.
• MME122AT / MME122ATST: 600 × 80 × 95 mm, strip length 1150 mm.
• MME150AT / MME150ATST: 750 × 80 × 95 mm, strip length 1310 mm.
• MME202AT / MME202ATST: 1005 × 80 × 95 mm, strip length 1560 mm.
• MME254AT / MME254ATST: 1260 × 80 × 95 mm, strip length 1870 mm.
• MME309AT / MME309ATST: 1525 × 80 × 95 mm, strip length 2120 mm.

Mounting Strip Dimensions

Mounting strip length is specified separately from the anode body length. The range includes seven strip length options:

The stated mounting strip length is the same for corresponding AT and ATST models. The mounting geometry differs between the bent-end and straight-strip versions.

When selecting an anode, compare the body dimensions, strip length and required mounting configuration with the existing installation.

Corrosion Protection and Application

The MME aluminium tank anodes are designed to provide sacrificial corrosion protection for metal tanks. The aluminium anode body acts as a sacrificial component, corroding preferentially to help protect electrically connected metal surfaces against corrosion.

The range provides 14 body sizes and two mounting strip configurations, allowing selection according to the required anode dimensions and mounting arrangement.

Product Identification

The following table lists the manufacturer product numbers and EAN codes for all 28 variants.

Sales Unit: 1 aluminium tank sacrificial anode.
