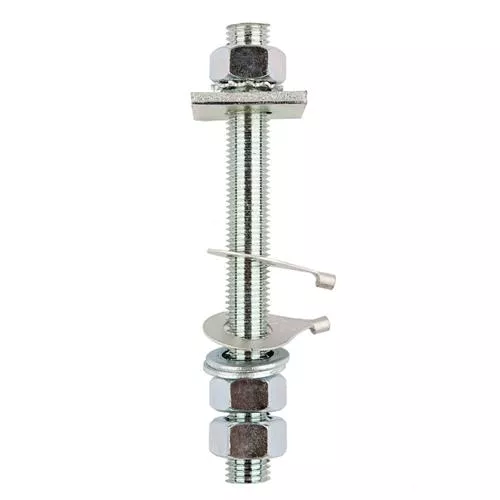

MG Duff M10BSS / M16BSS Stainless Steel 316 Stud Assemblies with Nuts and Washers – 110 mm
The MG Duff Stainless Steel 316 Stud Assemblies are mounting components designed for marine applications. Manufactured from stainless steel 316, these assemblies provide corrosion resistance and are supplied complete with nuts and washers.
The range includes two models: M10BSS with an M10 threaded stud and M16BSS with an M16 threaded stud. Both versions have a specified length of 110 mm. The M16BSS is additionally described as suitable for wooden and polyester vessels.
Key Features
- Brand: MG Duff
- Product Type: Complete stud assembly
- Material: Stainless Steel 316
- Available Models: M10BSS and M16BSS
- Available Thread Sizes: M10 and M16
- Stud Length: 110 mm
- Included Components: Nuts and washers
- Application: Marine mounting applications
- M16BSS Material Grade: 316/A4 marine-grade stainless steel
- M16BSS Vessel Compatibility: Wooden and polyester vessels
- Sales Unit: 1 complete assembly
Technical Specifications and Available Models
The MG Duff stud assembly range includes two variants with different thread sizes. Both models have the same specified length of 110 mm and are supplied complete with nuts and washers.
| Specification | M10BSS | M16BSS |
|---|---|---|
| Brand | MG Duff | MG Duff |
| Product Number | M10BSS | M16BSS |
| Material | Stainless Steel 316 | Stainless Steel 316/A4 |
| Thread Size | M10 | M16 |
| Product Length | 110 mm | 110 mm |
| Included Components | Nuts and Washers | Nuts and Washers |
| Suitable Vessel Materials | Not specified | Wood and Polyester |
| EAN Code | 5060333960391 | 5060333960438 |
| Sales Unit | 1 Assembly | 1 Assembly |
Stainless Steel Construction
Both stud assemblies are manufactured from stainless steel 316 for use in marine environments.
- M10BSS: Stainless steel 316 stud assembly with M10 threaded connection and a specified length of 110 mm.
- M16BSS: Stainless steel 316/A4 marine-grade stud assembly with M16 threaded connection and a specified length of 110 mm.
The stainless steel construction provides corrosion resistance in marine applications. Each assembly is supplied with nuts and washers.
Mounting and Installation
The MG Duff stud assemblies provide threaded mounting arrangements for marine installations. The two versions differ in thread size while sharing the same specified length.
- M10BSS: M10 threaded stud, 110 mm length.
- M16BSS: M16 threaded stud, 110 mm length.
- Supplied Components: Nuts and washers included with both versions.
The M16BSS is specified for use on wooden and polyester vessels.
Before ordering, verify the required thread size and mounting dimensions against the existing installation.
Dimensions and Model Selection
Select the appropriate model according to the required thread diameter. Both assemblies have a specified length of 110 mm.
- M10BSS: M10 × 110 mm stainless steel 316 stud assembly, complete with nuts and washers.
- M16BSS: M16 × 110 mm stainless steel 316/A4 stud assembly, complete with nuts and washers.
Product Identification
| Product Number | Thread Size | EAN Code |
|---|---|---|
| M10BSS | M10 | 5060333960391 |
| M16BSS | M16 | 5060333960438 |
Sales Unit: 1 complete stud assembly with nuts and washers.
