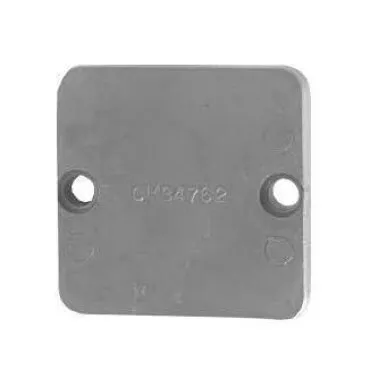

Martyr Aluminium Bolt-On Plate Anodes – 65 & 155 mm
The Martyr aluminium bolt-on plate anodes are sacrificial anodes designed for marine corrosion protection. The range includes two sizes with different overall dimensions, mounting centre distances and aluminium weights.
The correct version should be selected according to the required plate dimensions and bolt centre distance.
Available Models
| VDM Code | Dimensions | Centre Distance | Weight |
|---|---|---|---|
| ANOAH1701 | 65x65x10 mm | 51 mm | 0.094 kg |
| ANOAH1704 | 155x65x15 mm | 118 mm | 0.320 kg |
Key Features
- Brand: Martyr
- Material: Aluminium
- Type: Bolt-on plate anode
- Available Lengths: 65 and 155 mm
- Mounting Centre Distances: 51 and 118 mm
- Weight Range: 94–320 g
ANOAH1701 corresponds to original reference 34762A1. Select the appropriate anode according to the required dimensions and mounting centre distance.
