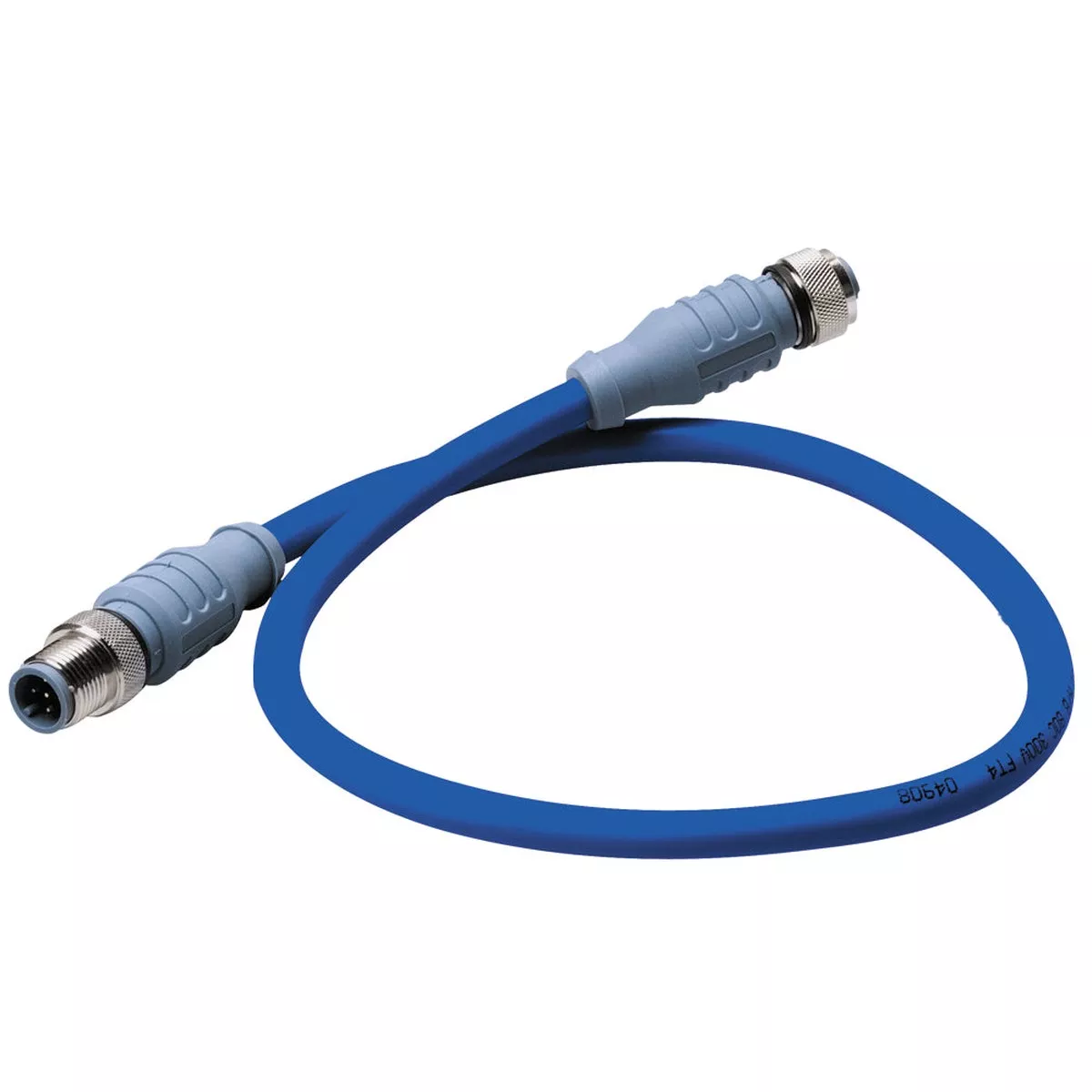

The Maretron Mid Double-Ended Cordset – 5 M Blue is an essential component for marine applications, providing reliable and high-performance connectivity between your boat’s electrical systems. Designed specifically for the harsh marine environment, this cordset ensures seamless communication and power transmission, enhancing your vessel’s functionality and safety.
Mechanical Specifications
- Contact Carrier Material/Color: Thermoplastic PUR / Blue-Gray
- Molded Body Material/Color: Thermoplastic PUR / Blue-Gray
- Contact Material/Plating: Brass / Gold
- Coupling Nut Material/Plating: Brass / Nickel
- Connector Outside Diameter: 0.59″
Electrical Specifications
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable Details
- Outer Jacket Material/Color: PVC / Gray
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors:
- 2×16 AWG (1.29 mm)
- Data: 2×20 AWG (0.81 mm)
- Drain Wire: 20 AWG (0.81 mm)
- Shielding (3 Levels):
- Foil (Overall)
- Foil (Power Pair)
- Foil (Data Pair)
Environmental Ratings
- Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
- Temperature Rating: -40C to 80C (-40F to 176F)
Certifications & Approvals
- Cable UL Certifications:
- PLTC 75C Sunlight Resistant E90625
- AWM 80C 300V
- Cable CSA Certifications:
- CMX-OUTDOOR-CMG LL54185 75C
- AWM I/II A/B 80C 300V FT4
- NMEA Approved: NMEA 2000
- IEC Compliance: IEC 61162-3
Product Specifications
| Specification | Details |
|---|---|
| Cable Length | 16′ (Feet) |
| Box Dimensions | 1″ H x 9″ W x 10″ L |
| Weight | 1.2 lbs |
| UPC | 873804001944 |
