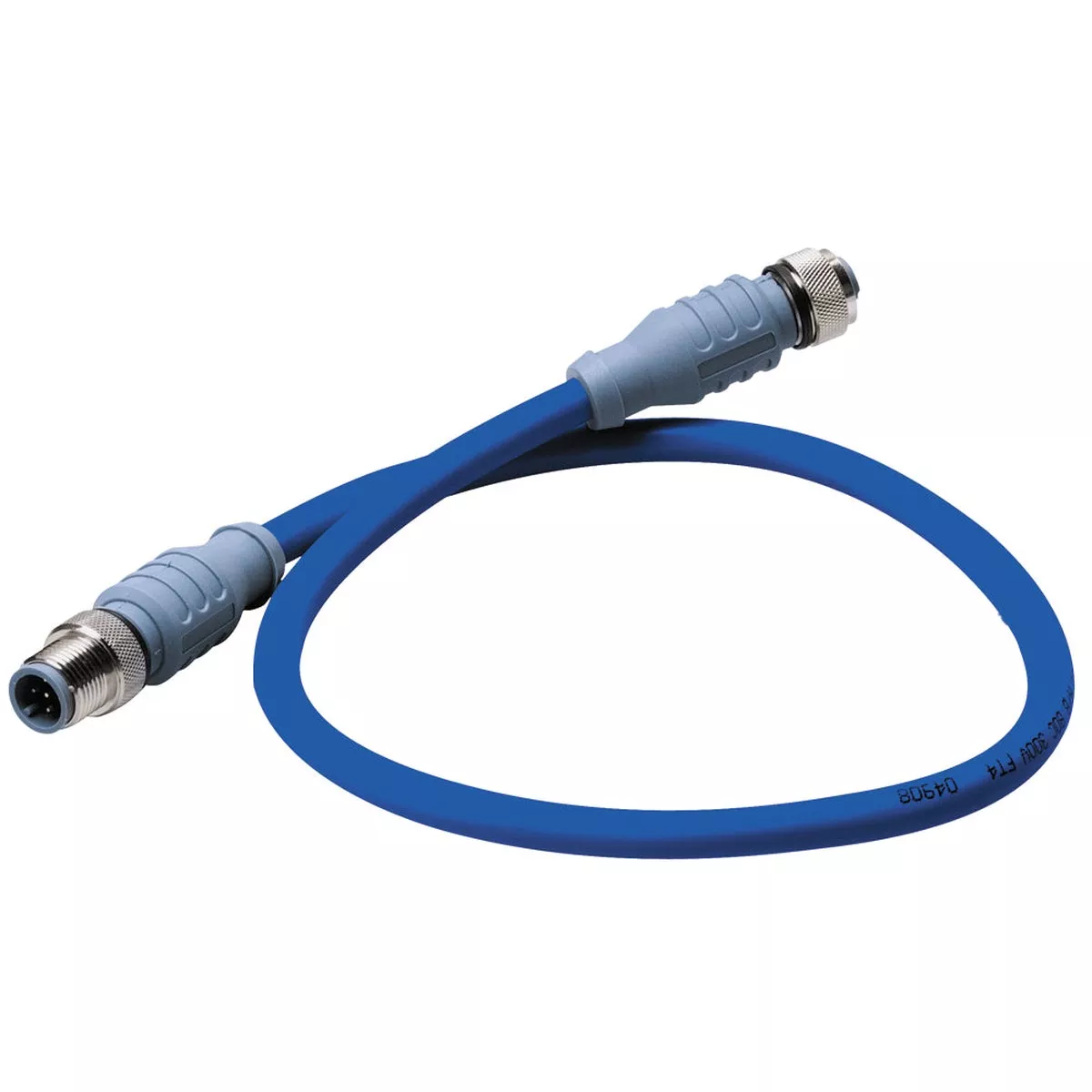

The Maretron Mid Double-Ended Cordset in vibrant blue is engineered for seamless and reliable connections in marine and boating environments. Whether you’re outfitting your vessel’s electrical systems or integrating advanced marine electronics, this cordset provides the durability and performance needed to withstand the harsh conditions at sea.
Key Features
Mechanical Specifications
- Contact Carrier Material/Color: Thermoplastic PUR in Blue-Gray
- Molded Body Material/Color: Thermoplastic PUR in Blue-Gray
- Contact Material/Plating: Brass with Gold Plating for enhanced conductivity
- Coupling Nut Material/Plating: Brass with Nickel Plating for corrosion resistance
- Connector Outside Diameter: 0.59 inches
Electrical Specifications
- Current Rating: 4.0 Amps, suitable for various marine electronics
- Voltage Rating: 250 V, ensuring safe and efficient power transmission
Cable Details
- Outer Jacket Material/Color: Durable PVC in Gray, designed to resist abrasion and environmental factors
- Conductor Insulation: PE (Polyethylene) for data pairs and PVC (Polyvinyl Chloride) for power pairs, providing optimal insulation for different wire types
- Number of Conductors:
- 2×16 AWG (1.29mm) for power
- Data: 2×20 AWG (0.81mm)
- Drain Wire: 20 AWG (0.81mm)
- Shielding:
- Overall Foil Shielding for maximum interference protection
- Foil Shielding for Power Pairs to ensure clean power delivery
- Foil Shielding for Data Pairs to maintain signal integrity
Environmental Ratings
- Protection Class: Complies with IEC IP68 and NEMA ratings 1, 3, 4, and 6P, ensuring protection against dust, water, and corrosion
- Temperature Range: Operational from -40C to 80C (-40F to 176F), suitable for various marine climates
Certifications and Approvals
- UL Certifications:
- PLTC 75C Sunlight Resistant E90625
- AWM 80C 300V
- CSA Certifications:
- CMX-OUTDOOR-CMG LL54185 75C
- AWM I/II A/B 80C 300V FT4
- NMEA: Approved for NMEA 2000 networking, ensuring compatibility with a wide range of marine electronics
- IEC: Meets IEC 61162-3 standards for marine communication networks
Product Specifications
| Attribute | Details |
|---|---|
| Cable Length | 0.5 M (2 Feet) |
| Box Dimensions | 1″ H x 5″ W x 6″ L |
| Weight | 0.2 lbs |
| UPC | 873804001890 |
Why Choose the Maretron Mid Double-Ended Cordset?
Designed specifically for the marine industry, the Maretron Mid Double-Ended Cordset offers unmatched reliability and performance. Its high-grade materials and rigorous certifications ensure that your marine electronics stay connected and protected, no matter the conditions. Easy to install and built to last, this cordset is an essential component for any serious boater looking to maintain a robust and efficient electrical system on their vessel.
