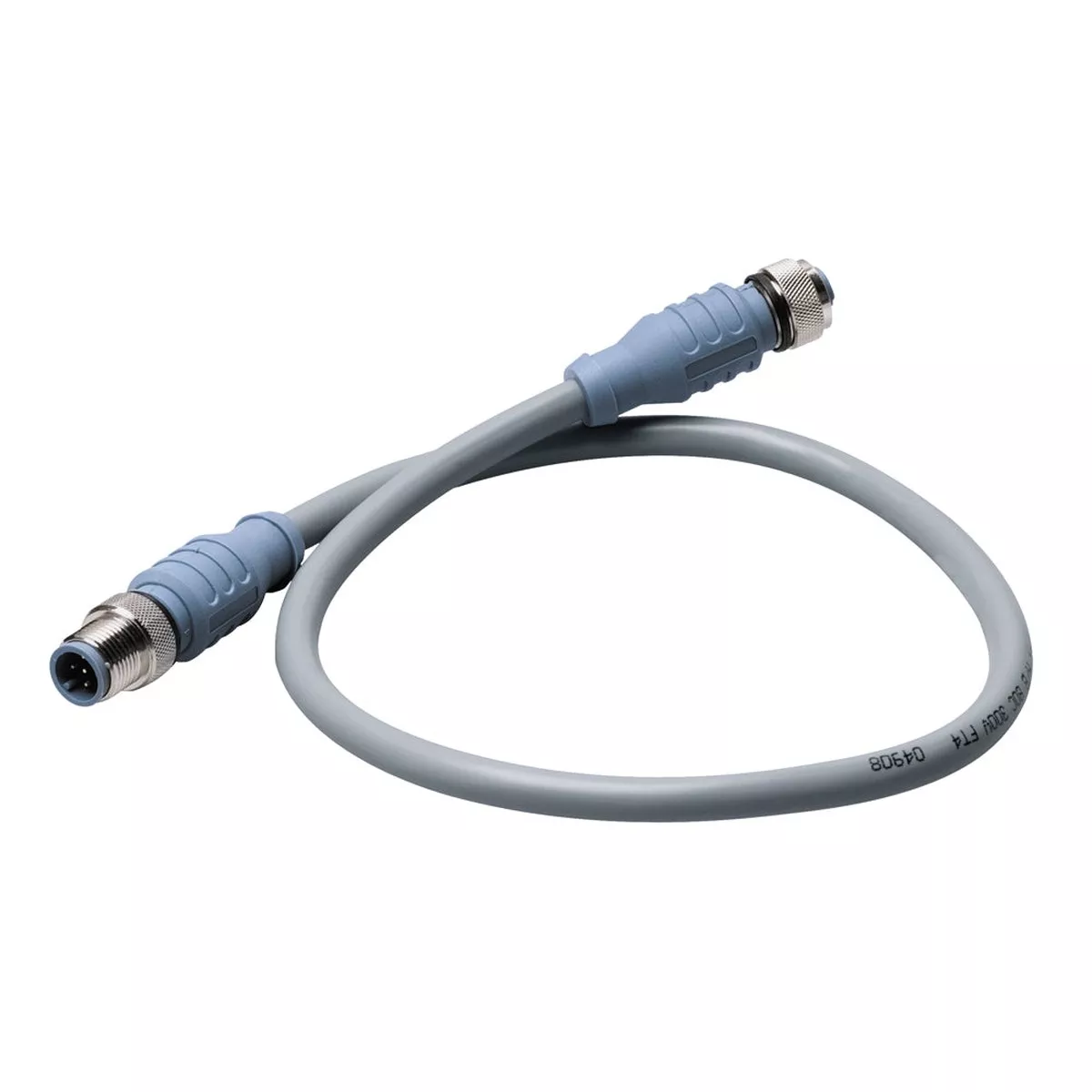

Enhance your marine electrical system with our premium NMEA 2000 approved cable assembly, engineered for exceptional durability and reliable performance in the demanding conditions of the marine environment. Whether you’re upgrading your boat’s navigation system or ensuring seamless connectivity between your marine electronics, this cable provides the quality and certification you need for peace of mind on the water.
Mechanical Specifications
| Component | Material/Color |
|---|---|
| Contact Carrier Mat | Thermoplastic PUR / Blue-Gray |
| Molded Body Mat | Thermoplastic PUR / Blue-Gray |
| Contact Mat Plating | Brass / Gold |
| Coupling Nut Plating | Brass / Nickel |
| Connector Outside Diameter | 0.59 |
Electrical Specifications
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable Construction
| Feature | Specification |
|---|---|
| Outer Jacket Material/Color | PVC / Gray |
| Conductor Insulation Material | HDPE (data pair), SRPVC (power pair) |
| Number of Conductors | 4 x 22 AWG, 22 AWG Drain Wire |
| Shielding (3 Levels) | FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) |
Environmental Resistance
- Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
- Temperature Rating: -40C to 80C (-40F to 176F)
Certifications & Approvals
- UL Certifications: PLTC 75C Sunlight Resistant E90625, AWM 80C 300V
- CSA Certifications: CMX-OUTDOOR-CMG LL54185 75C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Product Specifications
- Cable Length: 26 feet
- Box Dimensions: 1″ H x 7″ W x 8″ L
- Weight: 1.1 lbs
- UPC: 873804001586
