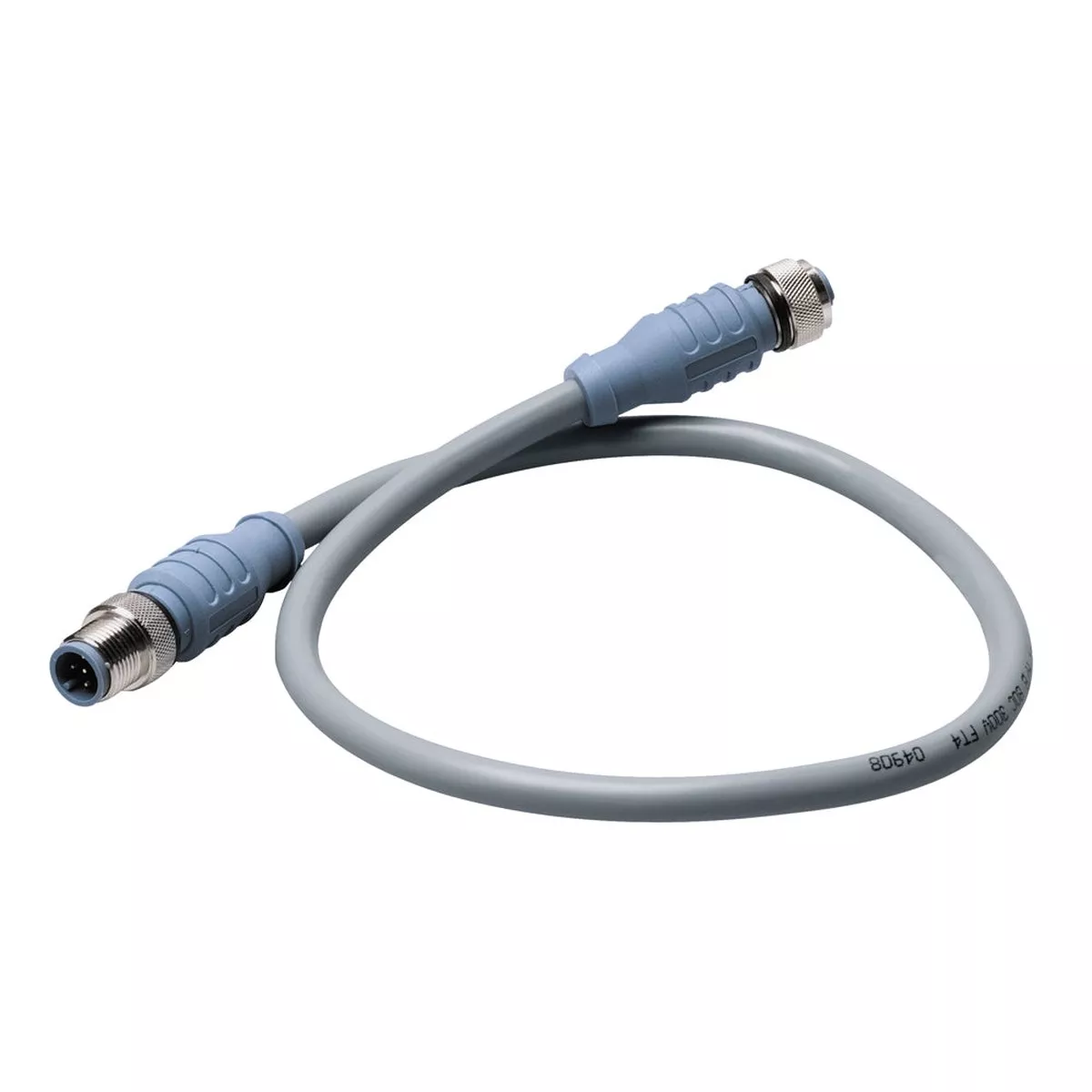

Enhance your marine electrical system with our high-performance connector, designed specifically for the demanding conditions of boating and marine environments. Engineered for durability and reliability, this connector ensures seamless power and data transmission, keeping your vessels systems running smoothly.
Product Features
- Constructed with Thermoplastic PUR for exceptional resistance to harsh marine conditions.
- Gold and Nickel plating for superior corrosion resistance and reliable electrical connections.
- Robust shielding with three levels of FOIL to prevent electromagnetic interference.
- IEC IP68 and NEMA 1,3,4,6P protection classes for maximum environmental protection.
- Approved by NMEA 2000 standards, ensuring compatibility with marine electronics.
Mechanical Specifications
| Component |
Material / Color |
| Contact Carrier Mat |
Thermoplastic PUR / Blue-Gray |
| Molded Body Mat |
Thermoplastic PUR / Blue-Gray |
| Contact Mat Plating |
Brass / Gold |
| Coupling Nut Plating |
Brass / Nickel |
| Connector Outside Diameter |
0.59″ |
Electrical Specifications
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable Specifications
| Attribute |
Details |
| Outer Jacket Material / Color |
PVC / Gray |
| Conductor Insulation Material |
HDPE (data pair), SRPVC (power pair) |
| Number of Conductors |
4×22 AWG, 22 AWG Drain Wire |
| Shielding (3 Levels) |
FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) |
Environmental Ratings
- Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
- Temperature Rating: -40C to 80C (-40F to 176F)
Approvals
- UL Certifications:
- PLTC 75C Sunlight Resistant E90625
- AWM 80C 300V
- CSA Certifications:
- CMX-OUTDOOR-CMG LL54185 75C
- AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Specifications
| Attribute |
Details |
| Cable Length |
13 feet |
| Box Dimensions |
1″ H x 7″ W x 7″ L |
| Weight |
0.65 lbs |
| UPC |
786788837105 |
