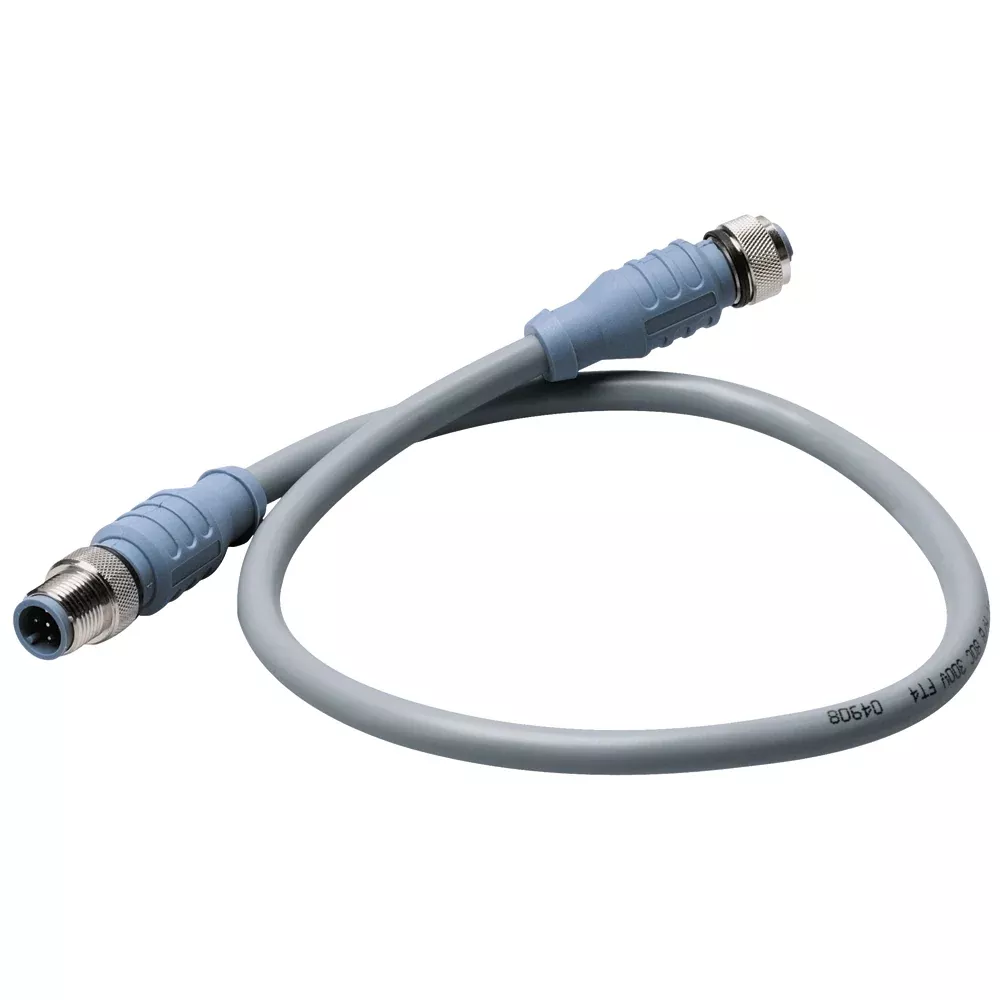

The 3M Micro Double-Ended Cordset is a reliable and versatile connection solution tailored for marine and boating applications. Engineered for durability and high performance, this cordset ensures seamless connectivity in harsh marine environments, providing both mechanical strength and superior electrical performance to keep your vessel’s systems running smoothly.
Mechanical Specifications
- Contact Carrier Material/Color: Thermoplastic PUR / Blue-Gray
- Molded Body Material/Color: Thermoplastic PUR / Blue-Gray
- Contact Plating: Brass / Gold
- Coupling Nut Plating: Brass / Nickel
- Connector Outside Diameter: 0.59″
Electrical Specifications
| Feature | Details |
|---|---|
| Current Rating | 4.0 Amps |
| Voltage Rating | 250 V |
| Cable Outer Jacket Material/Color | PVC / Gray |
| Conductor Insulation Material | HDPE (data pair), SRPVC (power pair) |
| Number of Conductors | 4 x 22 AWG, 22 AWG Drain Wire |
| Shielding (3 Levels) | FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) |
Environmental Specifications
- Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
- Temperature Rating: -40C to 80C (-40F to 176F)
- Approvals:
- UL: PLTC 75C Sunlight Resistant E90625, AWM 80C 300V
- CSA: CMX-OUTDOOR-CMG LL54185 75C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Product Specifications
| Specification | Details |
|---|---|
| Cable Length | 10 Feet |
| Data Interface | NMEA 2000 |
| Box Dimensions | 1″ H x 6″ W x 8″ L |
| Weight | 0.55 lbs |
| UPC | 873804001531 |
Specifications- Cable Length (Feet): 10′- Data Interface: NMEA 2000- Box Dimensions: 1″ H x 6″ W x 8″ L- Weight: 0.55 lbs- UPC: 873804001531
