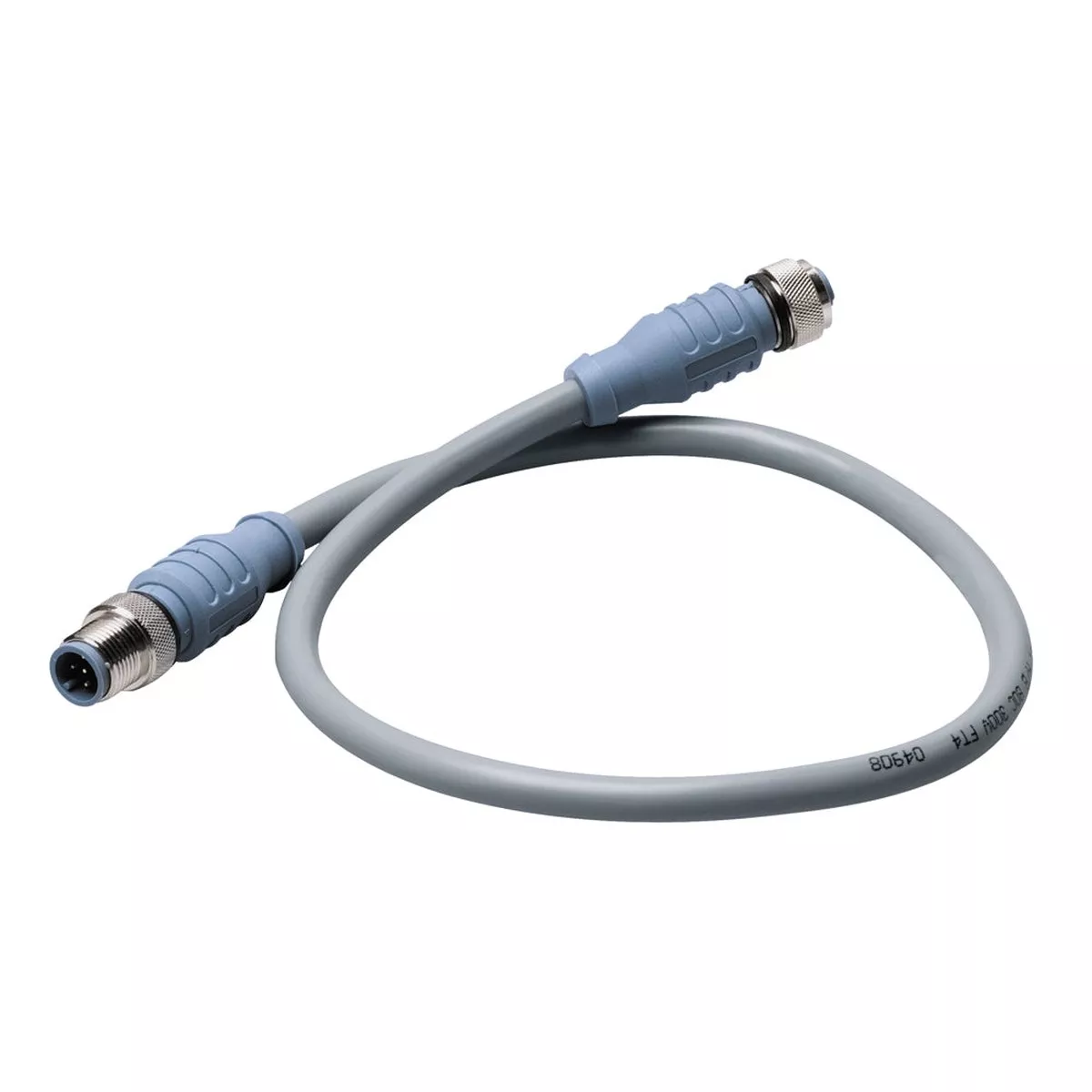

The Micro Double-Ended Cordset is an essential component for marine and boating applications, providing reliable and durable connectivity in harsh marine environments. With its robust construction and superior performance, this cordset ensures seamless power and data transmission for your vessel’s electrical systems.
Key Features
- Double-Ended Design: Facilitates easy connection between marine equipment and power sources.
- Durable Materials: Constructed with Thermoplastic PUR housings and PVC outer jackets for maximum durability and resistance to environmental factors.
- High Current and Voltage Ratings: Supports up to 4.0 Amps and 250 V, ensuring reliable power delivery.
- Advanced Shielding: Triple-layer foil shielding minimizes interference, maintaining data integrity in marine settings.
- Compact Size: With a connector diameter of just 0.59 inches, it fits seamlessly into tight marine spaces.
- Wide Temperature Range: Operates effectively between -40C to 80C (-40F to 176F), suitable for various marine climates.
Technical Specifications
| Parameter | Details |
|---|---|
| Cable Length | 2 Meter (6 Feet) |
| Connector Material | Thermoplastic PUR (Blue-Gray) |
| Plating | Brass/Gold Contacts and Brass/Nickel Coupling Nuts |
| Conductor Insulation | HDPE (Data Pair), SRPVC (Power Pair) |
| Number of Conductors | 4×22 AWG, 22 AWG Drain Wire |
| Shielding | Triple-Level FOIL Shielding (Overall, Power Pair, Data Pair) |
| Outer Jacket | PVC/Gray |
| Protection Class | IEC IP68, NEMA 1, 3, 4, 6P |
| Temperature Rating | -40C to 80C (-40F to 176F) |
Environmental Ratings
- IP68: Dust-tight and protected against continuous immersion in water.
- NEMA Ratings: Compatible with NEMA 1, 3, 4, and 6P standards, suitable for various marine environments.
Certifications and Approvals
- UL Certifications: PLTC 75C Sunlight Resistant E90625, AWM 80C 300V
- CSA Certifications: CMX-OUTDOOR-CMG LL54185 75C, AWM I/II A/B 80C 300V FT4
- NMEA Approved: Compliant with NMEA 2000 standards for marine electronics.
Product Details
- Box Dimensions: 1″ H x 7″ W x 7″ L
- Weight: 0.35 lbs
- UPC: 873804001524
Upgrade your marine electrical systems with the Micro Double-Ended Cordset, designed to deliver exceptional performance and reliability on the water. Whether you’re outfitting a recreational vessel or a professional boat, this cordset provides the quality and durability you need for seamless marine operations.
