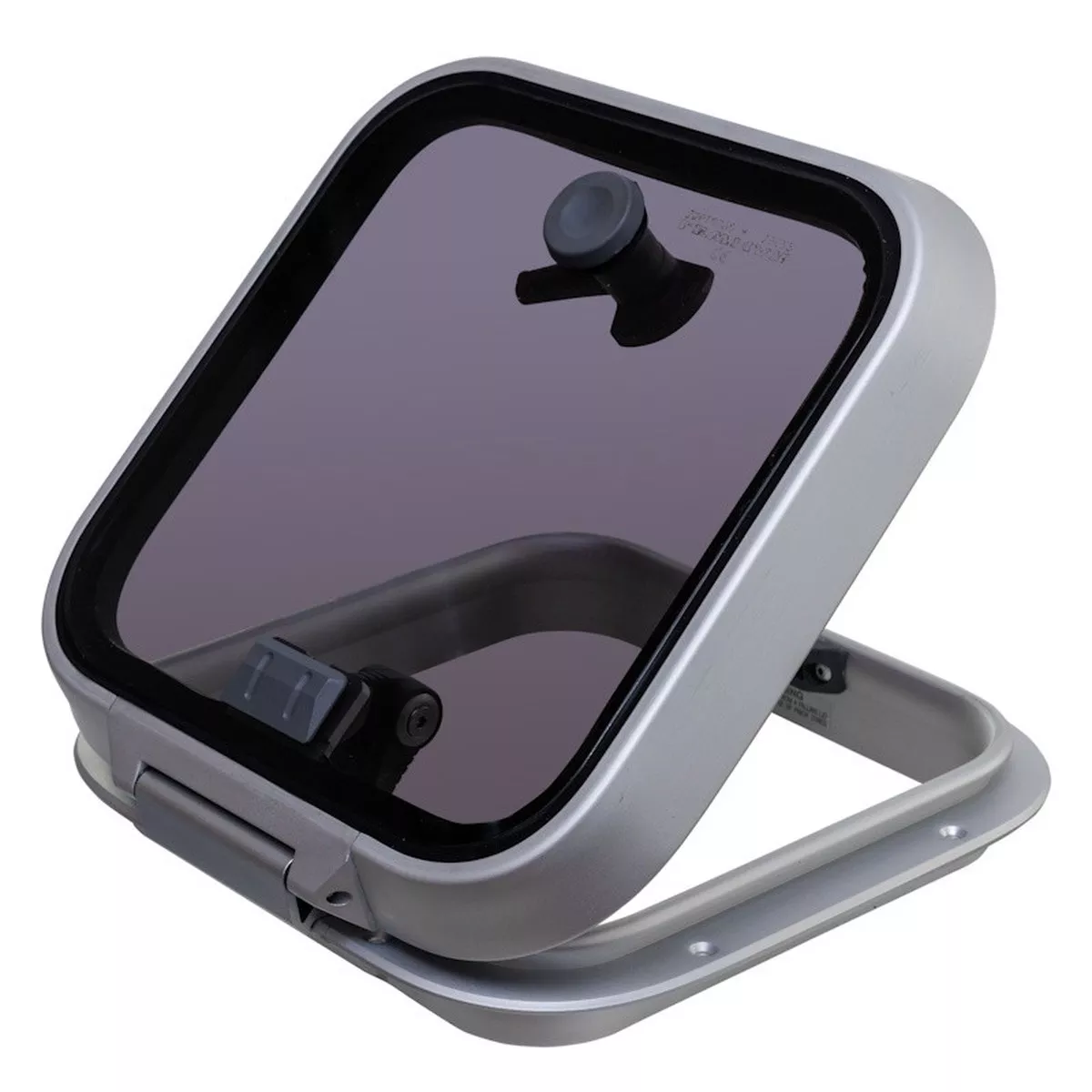

Lewmar Hatches – Ocean Range with Flange Base

Lewmar Hatches – Ocean Range with Flange BaseThe Ocean hatch range are a traditional styled deck hatch with a heavy duty aluminiumframe; available with or without internal flange. Manufactured to exacting standards, theOcean hatch range has been fitted to thousands of boats worldwide.This hatch features a “Flange Base” – the hatch flange sits inside the cutout.Designed to provideoffshore cruisers and yachts the ultimate in durability, strength, safety and protection. TheOcean hatch has been engineered with deeper frame sections for greater strength andutilises thick acrylic for durability.Features:Outside handlesAbility to lock the hatch fully closed or in the vented positionFriction levers hold the lid open in any position up to 95Anodised aluminium frame for corrosion resistanceAvailable with flat base or internal flangeCE approved for Area 2ANotes:A trim kit is required to fit a bug/insect screen. Also, if the trim kit is being fitted, the required cut-out dimensions increase slightly.Not all sizes are kept in stock.It is a special order item and the lead time is 2-3 monthsPart NumberShapeSizeAcrylic ThicknessNo. of HandlesExternal Handles?Flange Dimensions (L x W)Flange Radius (R)Cut-Out Dimensions (L1 x W1)Cut-Out Radius (R1)Height (Z)Lewmar Part NoTrim Kit & Bug Screen Options (Sold separately)LEW-170115Square1010mmOneYes324mm x 324mm75mm260mm x 260mm42.5mm39.5mm39610070White or IvoryLEW-170117Rectangle2010mmOneYes266mm x 411mm69mm202mm x 347mm36.5mm39.5mm39620070White or IvoryLEW-170119Rectangle3010mmTwoYes391mm x 521mm75mm327mm x 457mm42.5mm39.5mm39630070White or IvoryLEW-170135Square6012mmTwoYes574mm x 574mm76mm507mm x 507mm42.5mm43mm39660070White or IvoryLEW-170137Square7012mmTwoYes694mm x 694mm76mm627mm x 627mm42.5mm43mm39670070White or IvoryMore About LEWMAR Hatches & PortlightsManufactured in England, the quality range of Lewmar hatches and portlights offer a huge variety of sizesand styles perfectly suited to both OEM users and the retail replacement market.The Lewmar rangefeatures industry leading construction and are manufactured from silver anodised extruded aluminiumfitted with quality acrylic lenses ranging in thickness from 8mm to 12mm.
