Garmin GNX Wireless Sail Pack 43

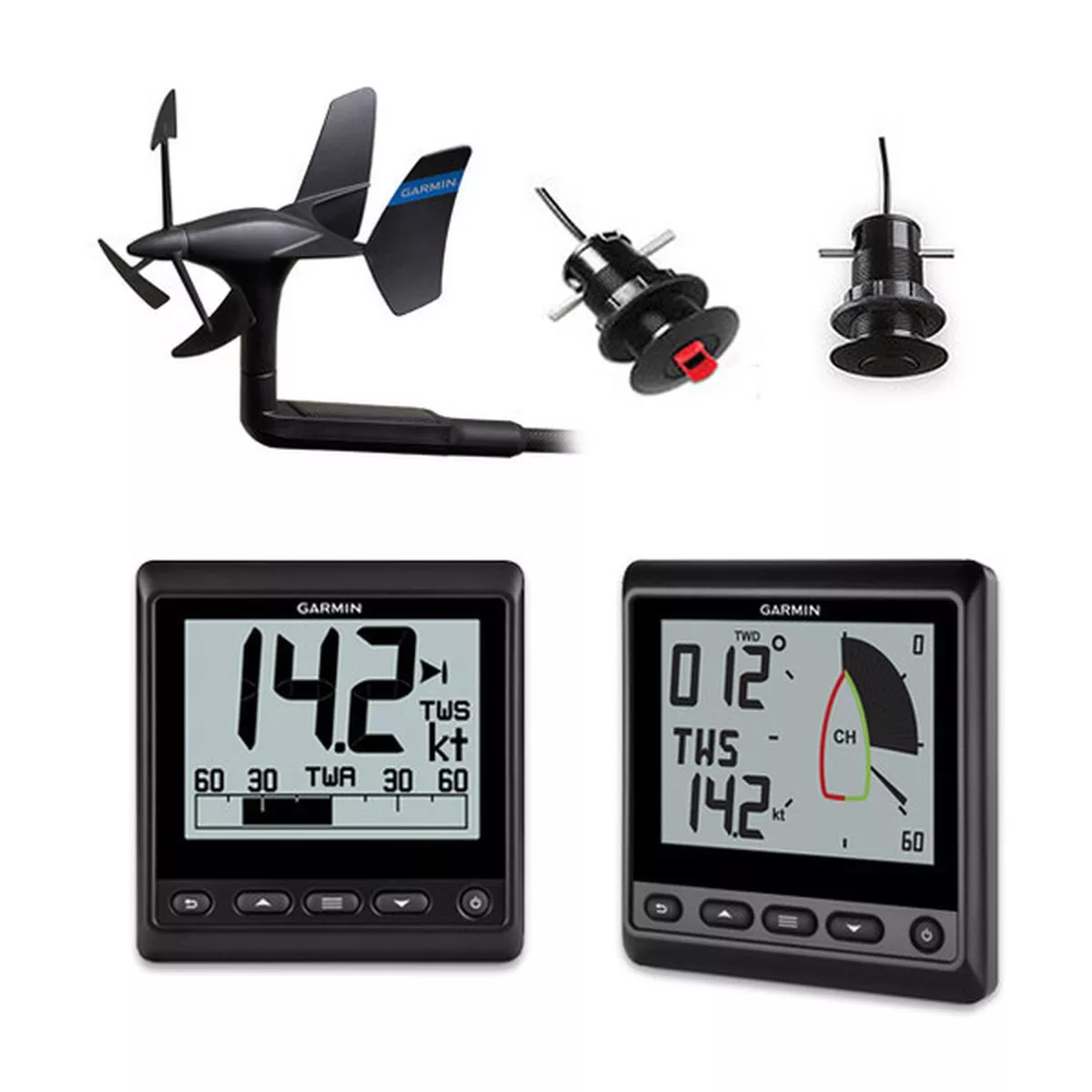

Garmin GNX Wireless Sail Pack 43 |010-01616-30This pack includes:The NEWGarmin gWindTM Wireless 2 Transduceroffers an easy-to-install solution that eliminates running wires through masts up to 50 ft. Accurate wind signals are sent via an ANT connection directly to a GNXTM Wind instrument or to a compatible Garmin GPSMAP chartplotter. The transducer features the award winning Nexus twin-fin technology with a 3-bladed propeller providing more accurate wind speed and more stable wind angle in lighter wind conditions. Also available in a wide selection of Wind and Sail Packs (sold separately) that can be used as standalone wind systems or expanded to full network systems via NMEA 2000. Wireless Wind Transducer Twin-Fin Design Easy Installation – no running wires 3-Bladed Propeller – accurate wind speed in lighter wind conditions Solar Panel Battery – Lasts 3 years | Easily Replaceable Accuracy Angle – Better than 1.5 Speed – Better than 3% Wind Speed Range – 0. 8-90 knots (0. 4-50 m/s) Wireless Connection to GNX Wind Instrument or GPSMAP 7400, 7600, 8400 or 8600 Multifunction Displays Waterproof – IPX6 Dimensions – 345mm x 610mm | W x H Weight – 350g Power – Battery (Rechargeable through the solar panel) TheGarmin GNX Wind Marine Instrumentcontains the perfect choice if you own a 20 to 40-foot sailing boat, theGNX Windprovides accurate and reliable data needed to make confident decisions, all on a high-visibility, glass-bonded backlit monochrome LCD display with customisable backlight colours making it easy to see from nearly any angle and even at a distance. The display also features large, easy-to-read black digits on white or customisable background colours for high contrast and high visibility in all lighting conditions and the 2 data fields and digital wind rose simultaneously display true and apparent wind data, Steer Pilot, boat speed and more. Other features include NMEA 2000 network capabilities with one plug and play connection for power and data, the Auto-Scroll setting will rotate through screens for easy, hands-free operation and offers low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats.Glass-Bonded Backlit Monochrome LCD Display Accurate & Reliable Display True and Apparent Wind Data, Steer Pilot, Boat Speed and more Auto-Scroll Feature Customisable Background Colours Customisable Configurations Compatible with Quatix GPS Marine Watch Low power Consumption Mounting – Flush or Flat Waterproof Rating – IPX7 Dimensions – 110 x 115 x 30 mm (4.33″ x 4.53″ x 1.18″) Weight – 230 g (8 oz) Power Consumption – 0.35 W (day); 0.4 W (night) Voltage Range – 9-16 V (from NMEA 2000)TheGNX 20marine instrument is an easy-to-read device with a 4 LCD display and black digits on a white or colour background that clearly shows depth, speed, wind and 50-plus marine and boat parameters. The display is also viewable in both day and night environments thanks to its glass-bonded display with anti-glare lens coating and high-contrast digits scalable up to 36 mm. Perfect for use on sailboats, theGNX 20providesfully customisable user profiles, auto-scroll, easy installation and also proves to be a valuable instrument for cruising and fishing.4 Glass-Bonded LCD Display Shows Depth, Speed, Wind and 50-plus marine and boat parameters Waterproof Rating – IPX7 Flat or Flush Mountable NMEA 0183 & NMEA 2000 Compatible Dimensions – 110 x 115 x 30 mm (4.33″ x 4.53″ x 1.18″)TheGST 43is a thru-hull transducer that can read water speed and temperature. The transducer can retrofit an existing Nexus 43mm thru-hull transducer (TH43). Bundled with the GST 10, the GST 43 can connect directly to the NMEA 2000 network, and the information can be displayed on a compatible Garmin chartplotter, multifunction or instrument display.TheGarmin GDT 43is a thru-hull transducer that can read water depth and water temperature. It can retrofit an existing Nexus and Silva 43 mm thru-hull transducer (TH43). When bundled with the NMEA 2000 adapter, theGDT 43can connect directly to the NMEA 2000 network, and the information can be displayed on a compatible Garmin chartplotter, multifunction display or instrument display.Waterproof Rating – IPX6 Dimensions -1.7 x 3.4 / 42 mm x 86 mm Weight -1.0 oz. / 0.45 kg (with cable) Operating Temp Range -14F to 158F / -10C to 70C This pack also includes:GST 10 adapter cable NMEA 2000adapter NMEA 2000 power cable NMEA 2000 terminators NMEA 2000 drop cable (2 meters) 3 NMEA 2000 T-connectors Mounting hardware NiMH battery Documentation MANUALS & GUIDES GNX WindGNX 20GST 43*If you have trouble opening the pdf file, please try installing Adobe Acrobat reader on your device.
