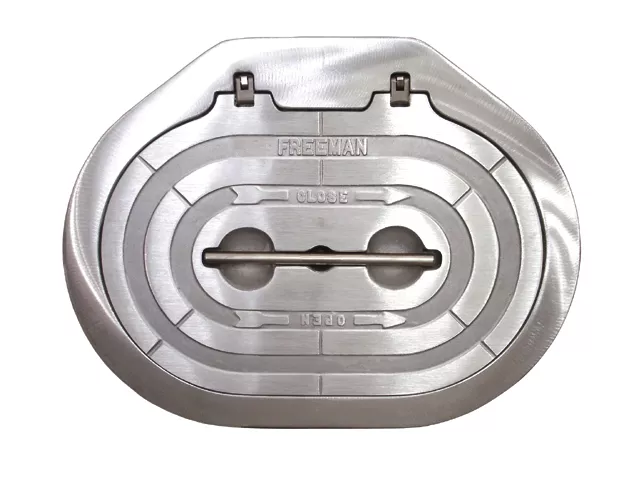

Freeman Marine Oval Hinged Deck Hatches – Durable Hinged Hatches for Maximum Protection
Freeman Marine Oval Hinged Deck Hatches offer an exceptional combination of durability and design, providing reliable protection for your vessel. With a stainless steel handle and water-repellent steel cover, these hatches are built to endure the toughest marine environments. All connections are designed to be completely waterproof, ensuring optimal performance for all your marine needs.
Available Sizes:
- Round 24″ (A-K)
- Round 24″ (S-K)
- Square 20″ x 20″ (A-K)
- Square 24″ x 24″ (A-K)
- Square 20″ x 20″ (S-K)
- Square 24″ x 24″ (S-K)
- Oval 15″ x 24″ (A-K)
- Oval 19″ x 26″ (A-K)
- Oval 15″ x 24″ (S-K)
- Oval 19″ x 26″ (S-K)
Round Hatch Types:
| Freeman Model | Size | Ring Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2448-0002 | 24″ | A-K | 612 | 663 | 777 | 41 | 10 | 15 | 29.9 |
| 2448-0003 | 24″ | S-K | 612 | 678 | – | 64 | 8 | 25 | 29.5 |
Square Hatch Types:
| Freeman Model | Size | Ring Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2462-0002 | 20″ x 20″ | A-K | 517 x 517 | 579 x 579 | 681 x 681 | 41 | 10 | 18 | 20.4 |
Manhole Types:
| Freeman Model | Size | Ring Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2464-0002 | 24″ x 24″ | A-K | 622 x 622 | 686 x 686 | 787 x 787 | 41 | 10 | 18 | 26.3 |
| 2464-0003 | 24″ x 24″ | S-K | 622 x 622 | 686 x 686 | – | 64 | 8 | 23 | 44.0 |
Oval Hatch Types:
| Freeman Model | Size | Ring Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2474-0002 | 15″ x 24″ | A-K | 388 x 615 | 437 x 665 | 533 x 762 | 41 | 8 | 15 | 15.9 |
| 2475-0002 | 19″ x 26″ | A-K | 488 x 665 | 538 x 716 | 691 x 823 | 41 | 8 | 15 | 20.0 |
| 2474-0003 | 15″ x 24″ | S-K | 388 x 615 | 454 x 678 | – | 64 | 8 | 6 | 27.2 |
| 2475-0003 | 19″ x 26″ | S-K | 488 x 665 | 551 x 729 | – | 64 | 8 | 6 | 30.0 |
Freeman Marine Oval Hinged Deck Hatches provide the best in waterproof, secure, and reliable hatch technology for any vessel. Built to last and designed with ease of use in mind, these hatches are perfect for marine applications requiring maximum protection and performance.
