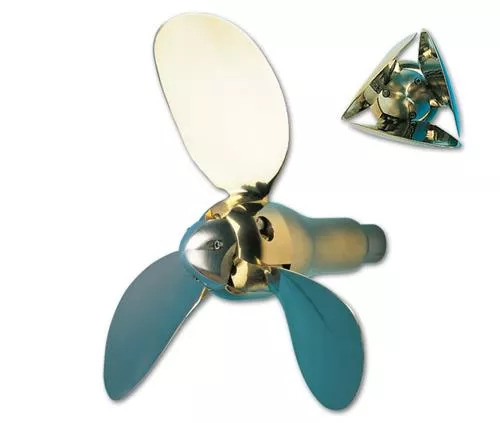

Flexofold Bladeset FP-3B 20×17 LH
This bladeset offers a 20-inch diameter and a 17-inch pitch with left-hand rotation. Constructed from Nickel Aluminum Bronze, it has 3 blades, a taper of 1:10, and fits a 40 mm shaft diameter with a maximum shaft hole diameter of 45 mm. It features keyway dimensions of 5 mm width and 12 mm length, compatible with product 735007.
Product Features
- Rotation Direction: Turning Left
- Material: Nickel Aluminum Bronze (Ni.Al.Br.)
- Number of Blades: 3
- Taper: 1 : 10
- Max Shaft Hole Diameter: 45 mm
- Keyway Width: 5 mm
- Keyway Length: 12 mm
Technical Data
| Article Code: | SP7872017 |
| Sales Unit: | 1 piece |
| Developed Area Ratio (DAR) %: | 1 |
| Shaft Diameter (mm): | 40 |
| Product Diameter (inch): | 20″ |
| Product Diameter (mm): | 508 |
| Pitch (inch): | 17″ |
Brand: Flexofold (Article code: SP7872017)
