Flexofold Bladeset FP-3B 16×12 RH

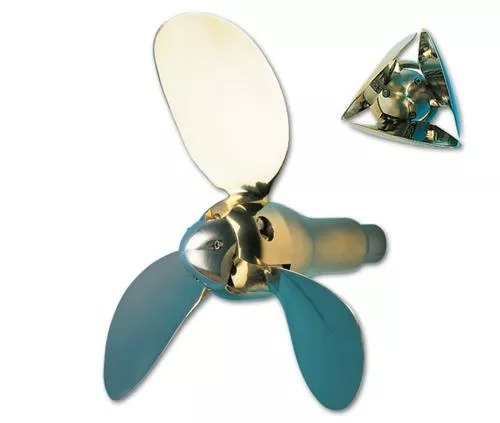

The Flexofold FP-3B 16×12 RH bladeset is a right-hand rotating 3-blade propeller bladeset, supplied as one piece. It is manufactured from Nickel Aluminum Bronze and designed for a tapered shaft connection.
Product Details
- Sales Unit: 1 piece
- Rotation Direction: Turning right
- Suitable For: 735007
Technical Data
| Article Code | SP7881612 |
| EAN Code | 8720193083889 |
| Developed Area Ratio | 0.83 |
| Shaft Diameter | 35 mm |
| Maximum Shaft Bore | 40 mm |
| Taper | 1 : 10 |
| Diameter | 16″ / 406 mm |
| Pitch | 17″ |
| Number Of Blades | 3 |
| Keyway Width | 4 mm |
| Keyway Length | 10 mm |
| Material | Nickel Aluminum Bronze (Ni.Al.Br.) |
Brand: Flexofold (Article code: SP7881612) (Barcode: 8720193083889)
