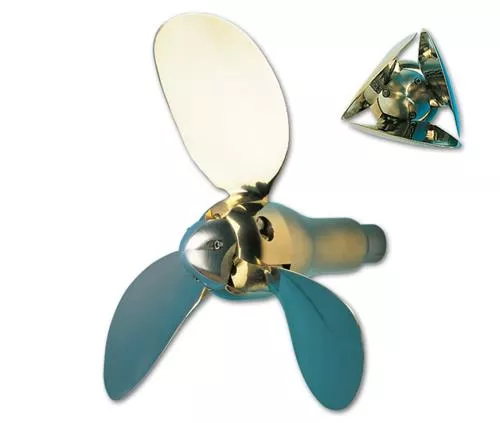

Flexofold Bladeset FP-3B 16×10 RH
The Flexofold FP-3B 16×10 RH bladeset is designed for a larger shaft diameter and features a 3-blade, right-hand rotating configuration.
Product Details
- Sales Unit: 1 piece
- Rotation Direction: Turning right
- Suitable For: 735007
Technical Data
| Article Code | SP7881610 |
| EAN Code | 8720193083865 |
| Developed Area Ratio | 1 |
| Shaft Diameter | 35 mm |
| Maximum Shaft Bore | 40 mm |
| Taper | 1 : 10 |
| Diameter | 16″ / 406 mm |
| Pitch | 17″ |
| Number Of Blades | 3 |
| Keyway Width | 4 mm |
| Keyway Length | 10 mm |
| Material | Nickel Aluminum Bronze (Ni.Al.Br.) |
Brand: Flexofold (Article code: SP7881610) (Barcode: 8720193083865)
