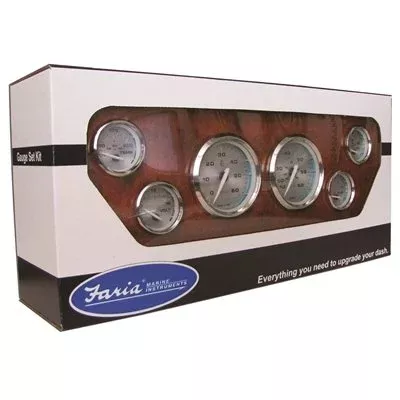

Faria Kronos 6-Gauge Inboard Boxed Set
FEATURES
- Inboard set includes the following (6) gauges:
- 4″ Speedometer (60 MPH) (Mechanical)
- 4″ Tachometer (6000 RPM)
- 2″ Fuel Level
- 2″ Voltmeter (10 – 16V DC)
- 2″ Water Temperature (100 – 250° F)
- 2″ Oil Pressure (80 PSI)
- Gauges fit standard 2″ and 4″ instrument dash mounting holes
- Perimeter-lighted dials are easy to read in poor light conditions and foul weather
- Made in U.S.A
SPECS
- Faria Model No. KTF024
- Style: Kronos
- Bezel Size: 2 1/4″ and 4 1/4″
- Dial: Edge-lit spun aluminum dial with gold and black graphics, polished stainless steel bezel, 2-piece Newport analog pointer with black hub, and flat scratch-resistant glass lens
- Operating Voltage: 11.5 – 16V DC
- Current Draw: <100 mA (without illumination)
- Operating Temperature: -4 F° to +158° F
- Ingress Protection (gauge front): IP65 (Dustproof / protected against jets of water from all directions)
- Cut-Out: 2-1/16″ Dia. (53 mm) and 3-3/8″ Dia. (85 mm)
