E. Polipodio Zinc Axis Line Ferretti Anodes – OG006, OG007, OG007A, OG008 & OG008A
The E. Polipodio Axis Line Ferretti Anodes are zinc anodes available in five dimensional configurations for Ferretti shaft-line applications. The range includes Polipodio references OG006, OG007, OG007A, OG008 and OG008A.
Corresponding Trem references are L8114040, L8114045, L8114050, L8114055 and L8114075. Available Ferretti models are F-RA-3M/1, F-RA-3M/2, F-RA-3M/2A, F-RA-3M/3 and F-RA-3M/3A.
Key Features
- Brand: E. Polipodio
- Type: Axis Line Ferretti Anode
- Material: Zinc (ZN)
- Polipodio References: OG006, OG007, OG007A, OG008, OG008A
- Trem References: L8114040, L8114045, L8114050, L8114055, L8114075
- Models: F-RA-3M/1, F-RA-3M/2, F-RA-3M/2A, F-RA-3M/3, F-RA-3M/3A
- Dimension A: Ø50–74 mm
- Dimension B: Ø41.5–61 mm
- Dimension C: 35–55 mm
- Height H: 65–95 mm
Available Models and Technical Specifications
| E. Polipodio Reference | Trem Reference | Model | A Ø | B Ø | C | H | Material |
|---|---|---|---|---|---|---|---|
| OG006 | L8114040 | F-RA-3M/1 | 50 mm | 41.5 mm | 37 mm | 65 mm | Zinc (ZN) |
| OG007 | L8114045 | F-RA-3M/2 | 50 mm | 41.5 mm | 35 mm | 65 mm | Zinc (ZN) |
| OG007A | L8114050 | F-RA-3M/2A | 61 mm | 48 mm | 40 mm | 75 mm | Zinc (ZN) |
| OG008 | L8114055 | F-RA-3M/3 | 58.5 mm | 47 mm | 40 mm | 90 mm | Zinc (ZN) |
| OG008A | L8114075 | F-RA-3M/3A | 74 mm | 61 mm | 55 mm | 95 mm | Zinc (ZN) |
E. Polipodio OG006 / Trem L8114040 – F-RA-3M/1
- Polipodio Reference: OG006
- Trem Reference: L8114040
- Model: F-RA-3M/1
- A: Ø50 mm
- B: Ø41.5 mm
- C: 37 mm
- H: 65 mm
- Material: Zinc (ZN)
- EAN: 8024827645710
E. Polipodio OG007 / Trem L8114045 – F-RA-3M/2
- Polipodio Reference: OG007
- Trem Reference: L8114045
- Model: F-RA-3M/2
- A: Ø50 mm
- B: Ø41.5 mm
- C: 35 mm
- H: 65 mm
- Material: Zinc (ZN)
- EAN: 8024827645727
E. Polipodio OG007A / Trem L8114050 – F-RA-3M/2A
- Polipodio Reference: OG007A
- Trem Reference: L8114050
- Model: F-RA-3M/2A
- A: Ø61 mm
- B: Ø48 mm
- C: 40 mm
- H: 75 mm
- Material: Zinc (ZN)
- EAN: 8024827645734
E. Polipodio OG008 / Trem L8114055 – F-RA-3M/3
- Polipodio Reference: OG008
- Trem Reference: L8114055
- Model: F-RA-3M/3
- A: Ø58.5 mm
- B: Ø47 mm
- C: 40 mm
- H: 90 mm
- Material: Zinc (ZN)
- EAN: 8024827645765
E. Polipodio OG008A / Trem L8114075 – F-RA-3M/3A
- Polipodio Reference: OG008A
- Trem Reference: L8114075
- Model: F-RA-3M/3A
- A: Ø74 mm
- B: Ø61 mm
- C: 55 mm
- H: 95 mm
- Material: Zinc (ZN)
- EAN: 8024827645772

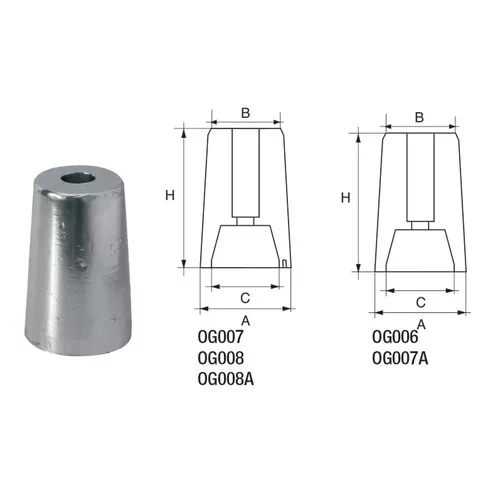

Dimensions for Model Selection
- A: Overall outside diameter
- B: Upper diameter
- C: Internal lower dimension shown in the catalogue drawing
- H: Overall height
For replacement selection, compare the E. Polipodio reference, Ferretti model and dimensions A, B, C and H with the existing anode.
