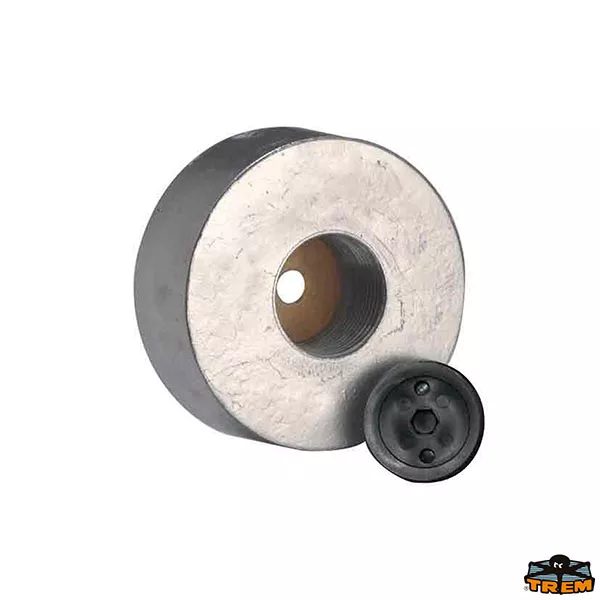

E. Polipodio Stern Round Flange Anodes – Ø120–140 mm
The E. Polipodio Stern Round Flange Anodes are available in three dimensional configurations with outside diameters from Ø120 to Ø140 mm.
The models differ in overall diameter, internal diameter and height. E. Polipodio references NC069, NC005 and NC014 correspond to Trem references L8100154, L8110150 and L8120214.
Available Models and Technical Specifications
| E. Polipodio Reference | Trem Reference | Outside Diameter | Internal Diameter | Height H |
|---|---|---|---|---|
| NC069 | L8100154 | Ø120 mm | Ø14 mm | 35 mm |
| NC005 | L8110150 | Ø136 mm | Ø16 mm | 55 mm |
| NC014 | L8120214 | Ø140 mm | Ø14 mm | 40 mm |
E. Polipodio NC069 / Trem L8100154
- Outside Diameter: Ø120 mm
- Internal Diameter: Ø14 mm
- Height: 35 mm
- EAN: 8024827691656
E. Polipodio NC005 / Trem L8110150
- Outside Diameter: Ø136 mm
- Internal Diameter: Ø16 mm
- Height: 55 mm
- EAN: 8024827671009
E. Polipodio NC014 / Trem L8120214
- Outside Diameter: Ø140 mm
- Internal Diameter: Ø14 mm
- Height: 40 mm
- EAN: 8024827644454
Dimensions for Model Selection
- Ø: Overall outside diameter
- Ø int.: Internal diameter
- H: Overall height
Select the required stern round flange according to the outside diameter, internal diameter and overall height of the existing installation.
