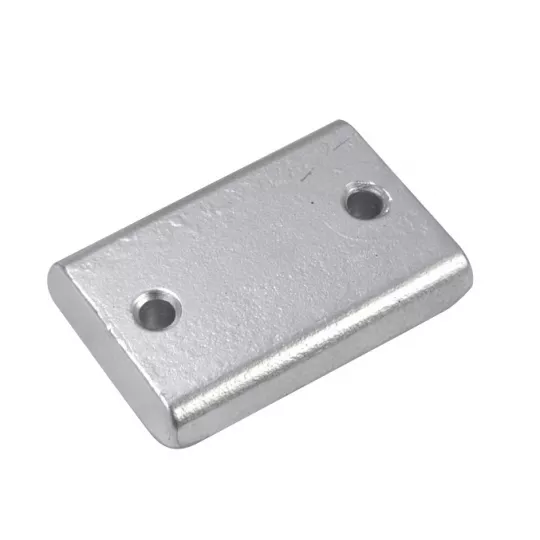

E. Polipodio Rectangular Zinc Sacrificial Anodes for Flap Systems – 73–190 mm
The E. Polipodio Rectangular Zinc Sacrificial Anodes are rectangular marine anodes for flap installations. The range includes four configurations with different body dimensions, mounting-hole spacing and weights.
Available anodes range from 73 to 190 mm in length, from 48 to 67 mm in width and from 10 to 24 mm in height. The mounting-hole centre distance (C) varies from 50 to 77 mm, while individual anode weights range from 0.330 to 1.450 kg.
Key Features
- Brand: E. Polipodio
- Type: Rectangular Sacrificial Anode
- Material: Zinc
- Application: Flap installations
- Length A: 73–190 mm
- Width B: 48–67 mm
- Mounting-Hole Centre Distance C: 50–77 mm
- Height D: 10–24 mm
- Weight Range: 0.330–1.450 kg
Available Models and Technical Specifications
| E. Polipodio Reference | FNI Code | A | B | C | D | Weight |
|---|---|---|---|---|---|---|
| 219 | 2626010 | 73 mm | 48 mm | 50 mm | 10 mm | 0.330 kg / 330 g |
| 212 | 2626013 | 110 mm | 67 mm | 57 mm | 20 mm | 0.970 kg / 970 g |
| 213 | 2626016 | 130 mm | 50 mm | 77 mm | 17 mm | 0.685 kg / 685 g |
| 239 | 2626018 | 190 mm | 54 mm | 76 mm | 24 mm | 1.450 kg / 1450 g |
E. Polipodio 219 / FNI 2626010 – 73x48x10 mm
- Material: Zinc
- Type: Rectangular anode
- Application: Flap installation
- Length (A): 73 mm
- Width (B): 48 mm
- Mounting-Hole Centre Distance (C): 50 mm
- Height (D): 10 mm
- Weight: 0.330 kg / 330 g
E. Polipodio 212 / FNI 2626013 – 110x67x20 mm
- Material: Zinc
- Type: Rectangular anode
- Application: Flap installation
- Length (A): 110 mm
- Width (B): 67 mm
- Mounting-Hole Centre Distance (C): 57 mm
- Height (D): 20 mm
- Weight: 0.970 kg / 970 g
E. Polipodio 213 / FNI 2626016 – 130x50x17 mm
- Material: Zinc
- Type: Rectangular anode
- Application: Flap installation
- Length (A): 130 mm
- Width (B): 50 mm
- Mounting-Hole Centre Distance (C): 77 mm
- Height (D): 17 mm
- Weight: 0.685 kg / 685 g
E. Polipodio 239 / FNI 2626018 – 190x54x24 mm
- Material: Zinc
- Type: Rectangular anode
- Application: Flap installation
- Length (A): 190 mm
- Width (B): 54 mm
- Mounting-Hole Centre Distance (C): 76 mm
- Height (D): 24 mm
- Weight: 1.450 kg / 1450 g
Dimensions for Model Selection
- A: Overall anode length
- B: Overall anode width
- C: Mounting-hole centre distance
- D: Anode height
Select the required anode by comparing A, B, C and D dimensions and weight with the existing installation.
