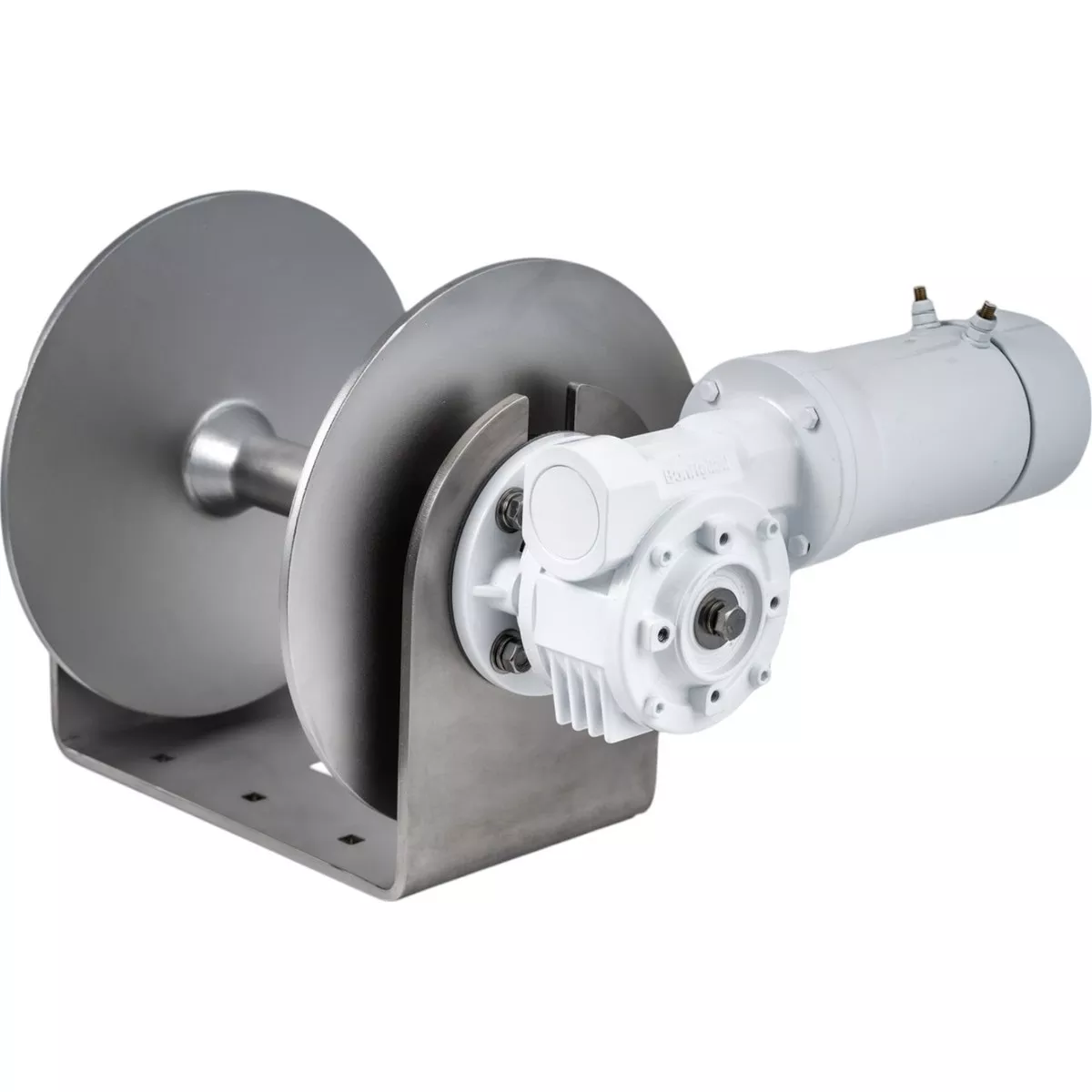

DW10 12V Drum Winch – Rope & Chain

DW10 12V Drum Winch – Rope & Chain Muirs patented range of drum winches varies from Auto Free Fall, Power Up & Power Down, as well as Manual Release Free Fall.They are all available to you in one unit making anchoring easy, fast and reliable. They do not require any more space than a standard drum winch.Muir drum winchessuit boats from 4 to 14 metres (1347ft), with a larger drum capacity than any other free falls on the market. Features:Marine grade 316 stainless steel drum Heavy duty, marine grade, dual-direction motor Superior, heavy-duty Italian drivetrain Compact anchoring system to suit boats with no anchor rode storage Simple installationTechnical Specifications:Recommended vessel length: 8-10m Power supply options: 12V DC Recommended Muir circuit breaker: 100A (12V) Motor (watts): 1200W Amps workload: 125A (12V) Max load: 261kg Workload: 87kg Max line speed: 33m/min Compatible chain sizes: 8mm (5/16″) & 10mm (3/8″) Compatible rope sizes: 10mm (3/8″) Auto anchor compatible: No Weight: 30kgOperating & Installation Manual
