EVAPORATORS FOR COLD MACHINE SERIES 80

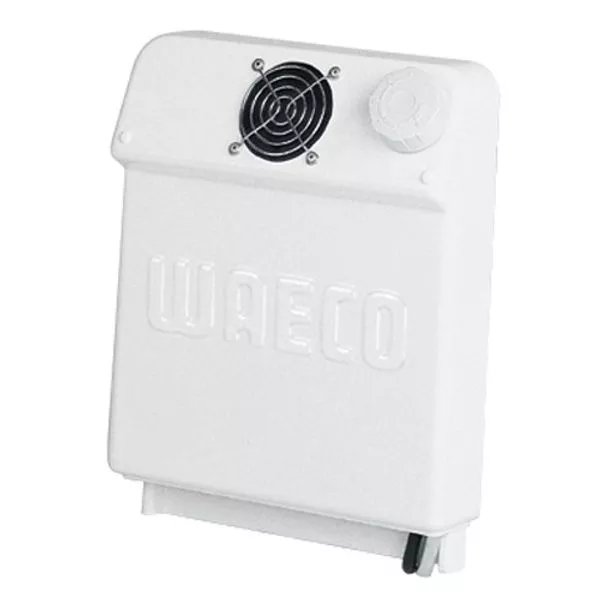

Circulating Air Evaporator
High-performance circulating air evaporator in a white plastic housing, with brushless fan, fast cooling through circulating air operation
Self-sealing valve couplings.
Flexible connection pipe approximately 2.5m
Thermostat is integrated in the evaporator housing
Technical Specifications
Compressor Options for this evaporator: 6-60160, 6-60161, 6-60162
| Model | VD-15 |
| Cooling Capacitieswith 35mm PU insulationwith 50mm PU insulation | 200 litres max250 litres max |
| Power Input | 60 Watts |
| Current Consumption (Ah/h)with 35mm PU insulationwith 50mm PU insulation | 2.001.50 |
| Dimensions (W X H X D)mm | 220x275x80 |
| Weight | Approx 2Kg |
