EVAPORATORS FOR COLD MACHINE SERIES 80

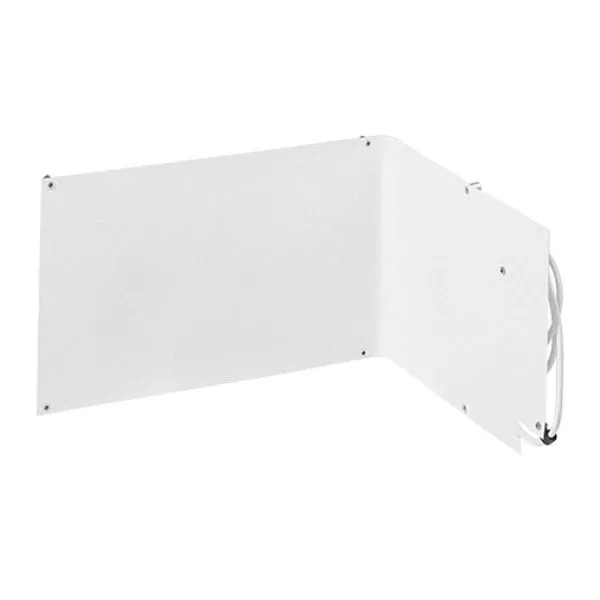

Standard Angle Evaporator
Self-sealing valve couplings.
Flexible connection pipe approximately 2m
Continuously variable thermostat (for external installation) with Blue turning dial and LED indicator in a white plastic housing.
Electric supply cord approx. 3m
Technical Specifications
Compressor Options for this evaporator: 6-60160, 6-60161, 6-60162
| Model | VD-08 |
| Cooling Capacitieswith 35mm PU insulationwith 50mm PU insulation | 160 litres max180 litres max |
| Power Input | 60 Watts |
| Current Consumption (Ah/h)with 35mm PU insulationwith 50mm PU insulation | 2.502.00 |
| Dimensions (W X H X D)mm | 465x270x360 |
| Weight | Approx 2Kg |
